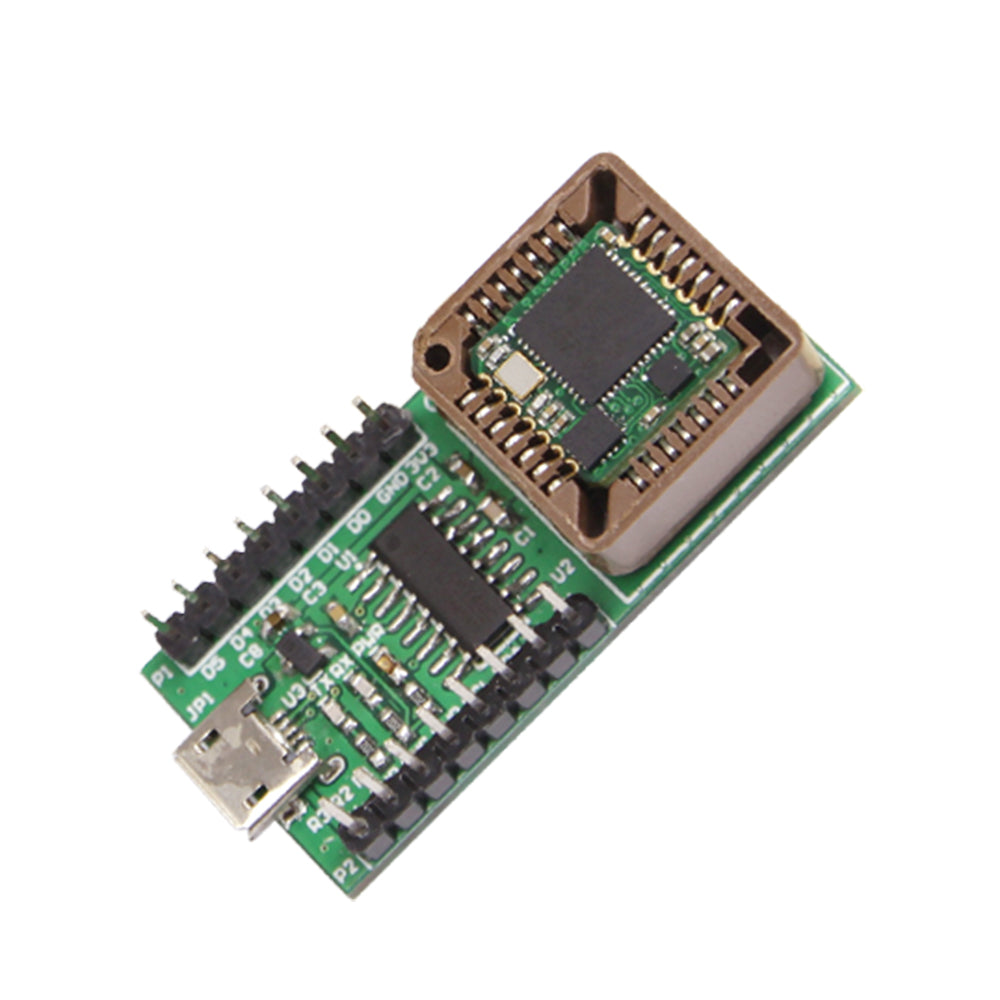

【500Hz Electronic Compass+Tilt Sensor】WT931 High-Performance Acceleration+Gyro+Angle +Magnetometer with Kalman Filtering, MPU9250 Vibration IMU with Evaluation Board (IIC/TTL), for Arduino and More

Available:In Stock
$46.90
  • Order within
  • 【 High Performance 】Rock-solid data output: 3-axis XYZ (Pitch Roll Yaw) Acceleration+ Gyro+ Angle+ Magnetic field+Quaternion, measurement range and output rate ( 0.2-500Hz) selectable
  • 【 Robust Design 】 Cortex-M0 core processor, highly-integrated MEMS, and Kalman Algorithm combine to deliver measurement accuracy at 0.05 degree(X, Y-axis), small in size, diverse interface, professional for customer's integration project
  • 【 WITMOTION Advantage 】8-year Professional Attitude Measuring Solution Provider, sensors integrated R&D dynamic fusion algorithm and Kalman Filtering ensuring stable data output and excellent bias stability, low noise level, increasing measurement accuracy
  • 【 Worry-free Support 】12-month warranty, lifetime friendly customer service by WitMotion team. Option 1. The tutorial link is printed on the guiding card inside the package. Option 2. search wit-motion(dot)com and download the complete tutorial. Option 3. contact us if you need any help, support (at) wit-motion (dot) com
  • 【 What You Get 】1 x WitMotion WT931 TTL Accelerometer sensor+ 1 x Evaluation Board +1 x Welcome guide (USB-UART converter not included )
  • is_customized: Yes
  • Usage: Tilt Angle Measurement
  • Type: Acceleration Sensor
  • Output: Digital Output
  • Brand Name: WitMotion
  • Origin: Mainland China
  • Output Data: Time, Acceleration, Angular Velocity, Angle, Magnet Field
  • Input Voltage: 3.3V-5V
  • Consumption Current: typical 10mA
  • Measuing: Thriple-Axis, XYZ, (Roll, Pitch, Yaw)
  • Interface: TTL interface
  • Design: Kalman Filtering
  • Accuracy: XY Static: 0.05 degree, Z-axis 1 degree
  • Angle Accuracy: Dynamic 0.2 degree
  • Maximum Output Frequency: 1000HZ
  • After-sale Service: Lifetime Technical Support
  • 【 High Performance 】Rock-solid data output: 3-axis XYZ (Pitch Roll Yaw) Acceleration+ Gyro+ Angle+ Magnetic field+Quaternion, measurement range and output rate ( 0.2-500Hz) selectable
  • 【 Robust Design 】 Cortex-M0 core processor, highly-integrated MEMS, and Kalman Algorithm combine to deliver measurement accuracy at 0.05 degree(X, Y-axis), small in size, diverse interface, professional for customer's integration project
  • 【 WITMOTION Advantage 】8-year Professional Attitude Measuring Solution Provider, sensors integrated R&D dynamic fusion algorithm and Kalman Filtering ensuring stable data output and excellent bias stability, low noise level, increasing measurement accuracy
  • 【 Worry-free Support 】12-month warranty, lifetime friendly customer service by WitMotion team. Option 1. The tutorial link is printed on the guiding card inside the package. Option 2. search wit-motion(dot)com and download the complete tutorial. Option 3. contact us if you need any help, support (at) wit-motion (dot) com
  • 【 What You Get 】1 x WitMotion WT931 TTL Accelerometer sensor+ 1 x Evaluation Board +1 x Welcome guide (USB-UART converter not included )
  • is_customized: Yes
  • Usage: Tilt Angle Measurement
  • Type: Acceleration Sensor
  • Output: Digital Output
  • Brand Name: WitMotion
  • Origin: Mainland China
  • Output Data: Time, Acceleration, Angular Velocity, Angle, Magnet Field
  • Input Voltage: 3.3V-5V
  • Consumption Current: typical 10mA
  • Measuing: Thriple-Axis, XYZ, (Roll, Pitch, Yaw)
  • Interface: TTL interface
  • Design: Kalman Filtering
  • Accuracy: XY Static: 0.05 degree, Z-axis 1 degree
  • Angle Accuracy: Dynamic 0.2 degree
  • Maximum Output Frequency: 1000HZ
  • After-sale Service: Lifetime Technical Support

Tutorial Link

PC Software

    Android APP

     Manual, Datasheet

         Tutorial Videos

        SDK

         Sample codes

      Technical Support:support@wit-motion.com
