Inclinometers & IMUs

WitMotion builds tilt and motion sensors for engineers who need a number they can trust, not a board that needs a month of calibration work.

This range covers two related families. Digital inclinometers report a finished tilt angle over RS485, TTL or RS232 — you send a command, you get degrees back, with temperature compensation and filtering already applied. IMU and AHRS modules expose raw acceleration, angular rate and fused attitude, plus a magnetometer on 9-axis and 10-axis versions, for projects that need the full motion picture rather than a single angle.

Which of the four ranges do you need?

Range What it outputs Typical accuracy Best for
Digital Inclinometers A finished tilt angle 0.2° down to 0.001° Machine levelling, platform setup, antenna and solar tracking

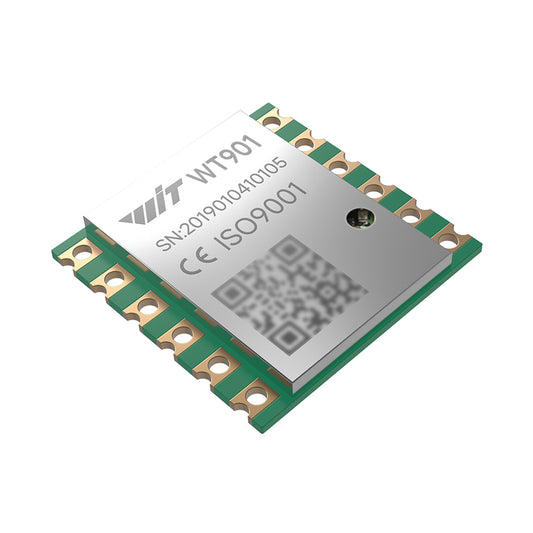

IMU & AHRS Modules Acceleration, angular rate, fused attitude, magnetic field 0.05° to 0.2° attitude Robotics, motion capture, dynamic platforms, control loops
Z-Axis Inclinometers Rotation about the vertical axis only 0.1° class Camera gimbals, steering angle, azimuth and turntable position
High-Precision Inclinometers Metrology-grade tilt 0.001° class Survey work, calibration benches, structural monitoring

Choose by accuracy

0.2° covers general levelling and machine orientation. 0.1° and 0.05° handle antenna pointing and platform levelling. The 0.001° class is built for metrology and survey work, where the reading is the deliverable rather than a control input.

Choose by interface

RS485/Modbus for PLC and SCADA integration. TTL/UART for Arduino, Raspberry Pi and STM32. CAN where a vehicle bus already exists. I2C or SPI for embedded designs where the module sits on your own board.

Housings and support

Housings range from bare modules for embedding to IP67 and IP68 aluminium enclosures for outdoor and washdown environments. Every product ships with free PC software, a register map and sample code.

If you only need an angle, start with the digital inclinometer range. If you need motion data, go to the IMU and AHRS modules. If the measurement is a single vertical rotation, the Z-axis range is the shorter path.
