WTVB01-485 vibration sensor

**Free software

https://drive.google.com/drive/folders/1TLutidDBd_tDg5aTXgjvkz63OVt5_8ZZ?usp=drive_link

Manual / Datasheet / Code:

**WTVB01-BT50

https://drive.google.com/drive/folders/10VcLAPT-j5FFnNH1I6TBXMrk2FL3Yv9K?usp=drive_link

**WTVB01-485

https://drive.google.com/drive/folders/15p7ZJVKMsaV_eTzXRlOVxuf1tIH_RUPD?usp=drive_link

**WTVB02-485

https://drive.google.com/drive/folders/1llb338-dnmdDICW1x3IOF5CrTAUZniNV?usp=drive_link

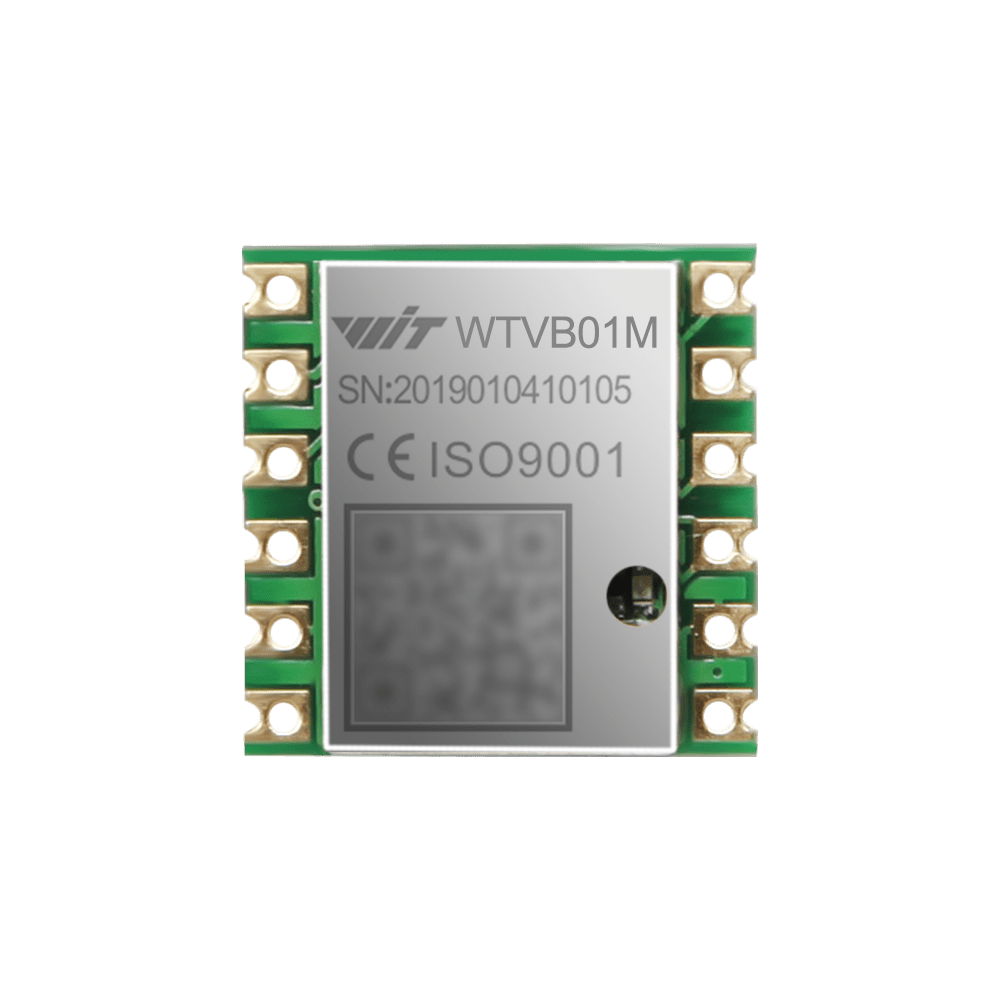

**WTVB01M

https://drive.google.com/drive/folders/1rTpI91ysId0MCmZo8vZ-Cg2zntjjZSCJ?usp=drive_link

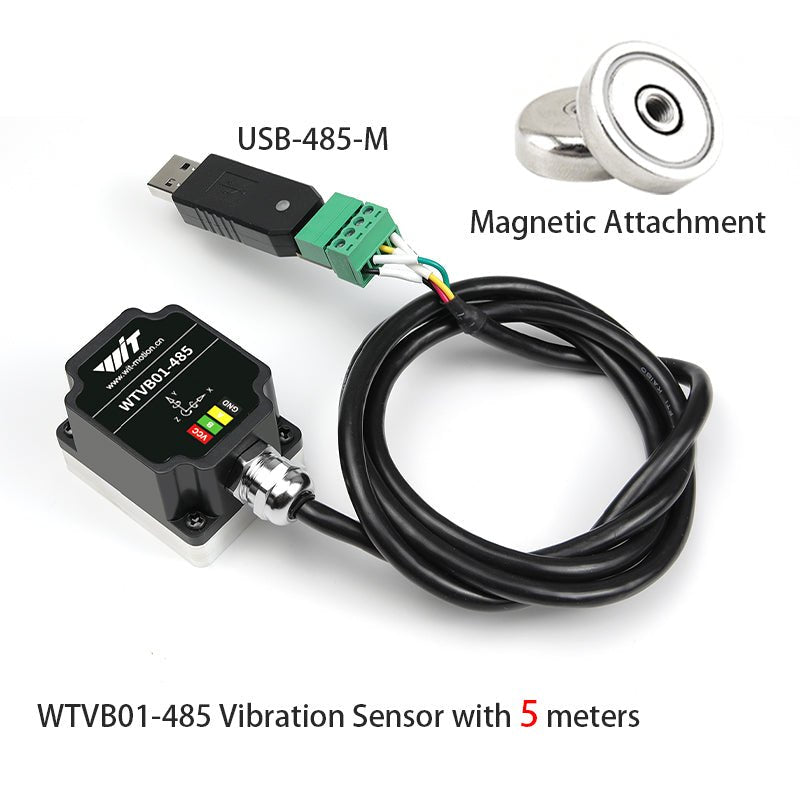

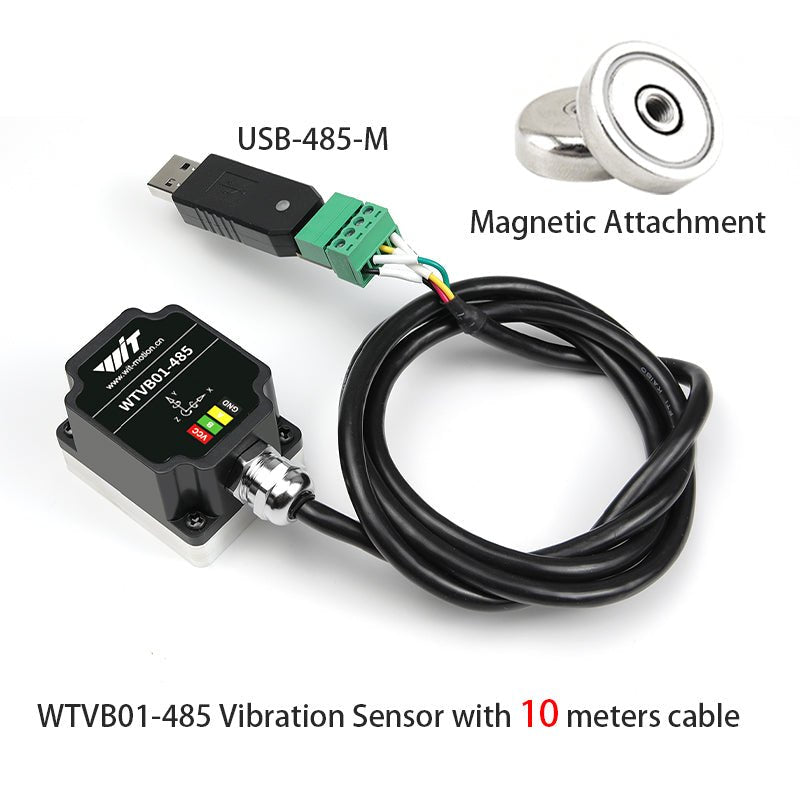

WTVB01-485

High-performance vibration sensor

【Output】The vibration sensor can output three-axis acceleration, angular velocity, vibration velocity, vibration displacement, and vibration frequency.

【Easy to install】Magnetic connection and threaded connection. Firm and stable, easy to install and disassemble.

【Support】Provide users with various host computers, instructions, and development manuals. At the same time, a professional technical support team will escort you.

【Accuracy】<F.S±5%: indicates 5% of the measuring range. Taking vibration displacement as an example, when the actual displacement value is 300um, the data error is 5% of 300um. When the actual value is 3000um, the data error is 5% of 3000um.

【Filtering technology:】Using advanced digital filtering technology can effectively reduce measurement noise and improve measurement accuracy.

【Voltage】 The module has its own voltage stabilization circuit, the operating voltage is 9V~36V, and the connection is convenient.

【Application areas】 The vibration sensors can be widely used in bearing vibration measurement and real-time monitoring of rotating machinery such as submersible pumps, fans, steam turbines, coal mills, oxygen generators, generators, centrifuges, compressors, water pumps, motors, etc.

【Measuring range:】Vibration speed: 0~50mm/s, vibration displacement: 0~30000um, vibration frequency 1-100hz.

【Frequently Asked Questions】

The transmission frequency is too low in normal mode.
Cause: The baud rate is set too low.

The number of data frames recorded in normal mode is too small.
Cause: Normal mode uses the Modbus communication protocol, which uses a question-and-answer system. The higher the baud rate, the higher the data reading frequency.

No data after powering back on.
Cause 1: The host computer's baud rate is set incorrectly. Click Search Device.
Cause 2: The serial port is missing. Check if the serial port exists. If the device cannot be found, reconnect the 3-in-1 or 6-in-1 device, refresh the computer, find the recognized COM port, and reconnect.

The host computer cannot find the device.
Cause: The sensor's address or baud rate may have been modified. Please be patient; the search process may take several minutes.
