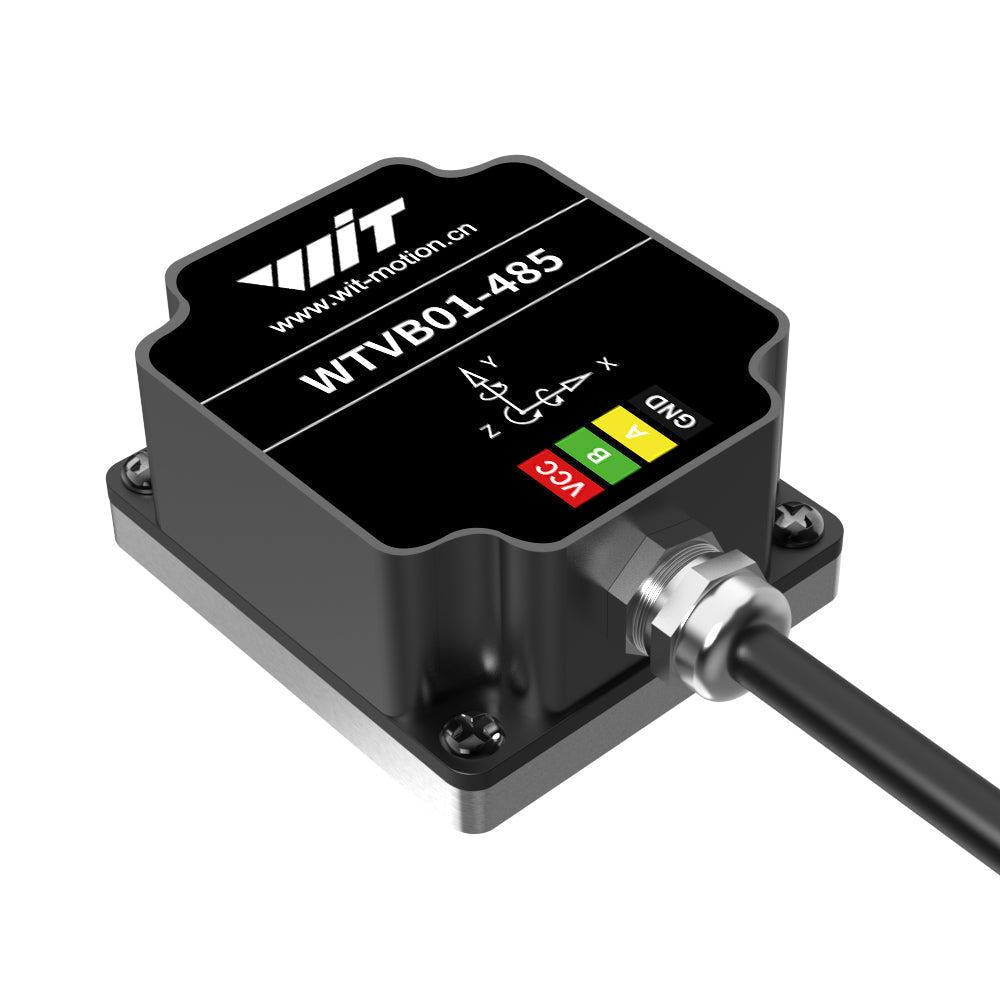

WTVB01-485 Industrial Vibration Sensor – RS485 Modbus Triaxial Monitoring for Motors & Pumps
Couldn't load pickup availability

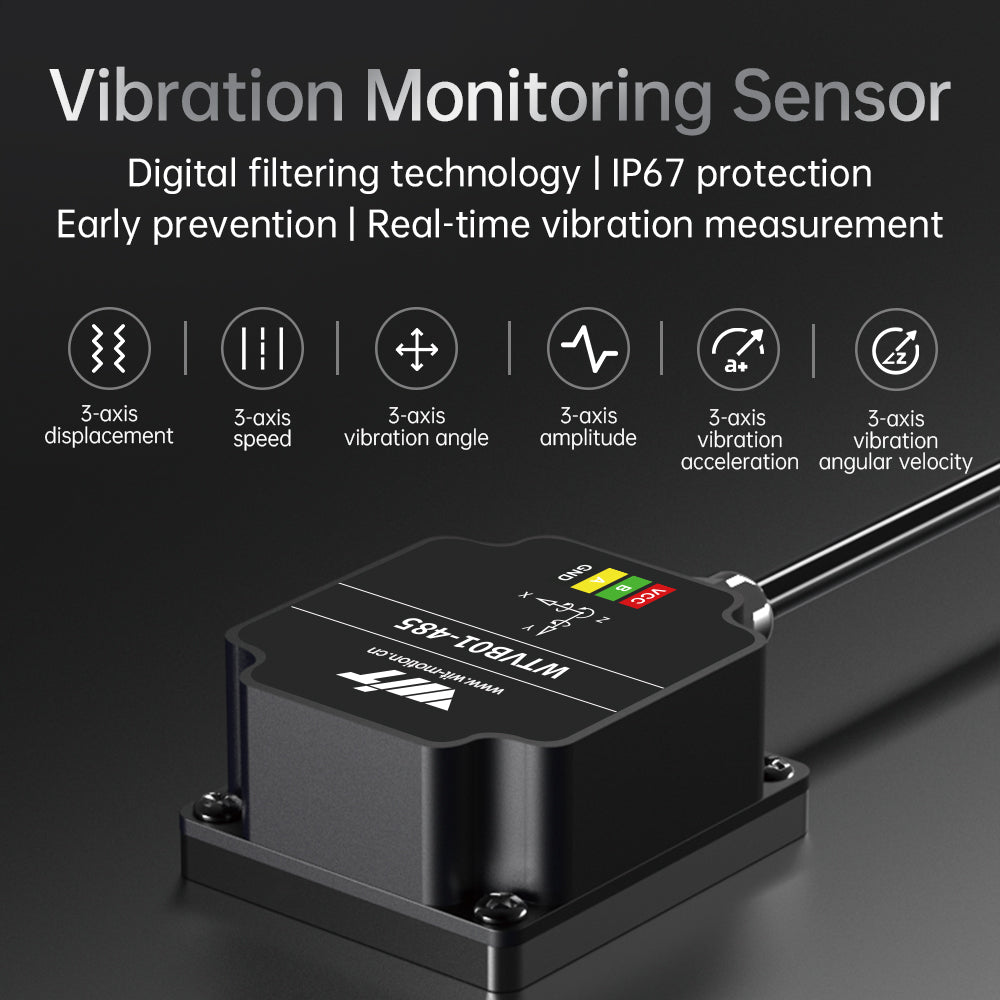

Industrial Vibration Sensor Features

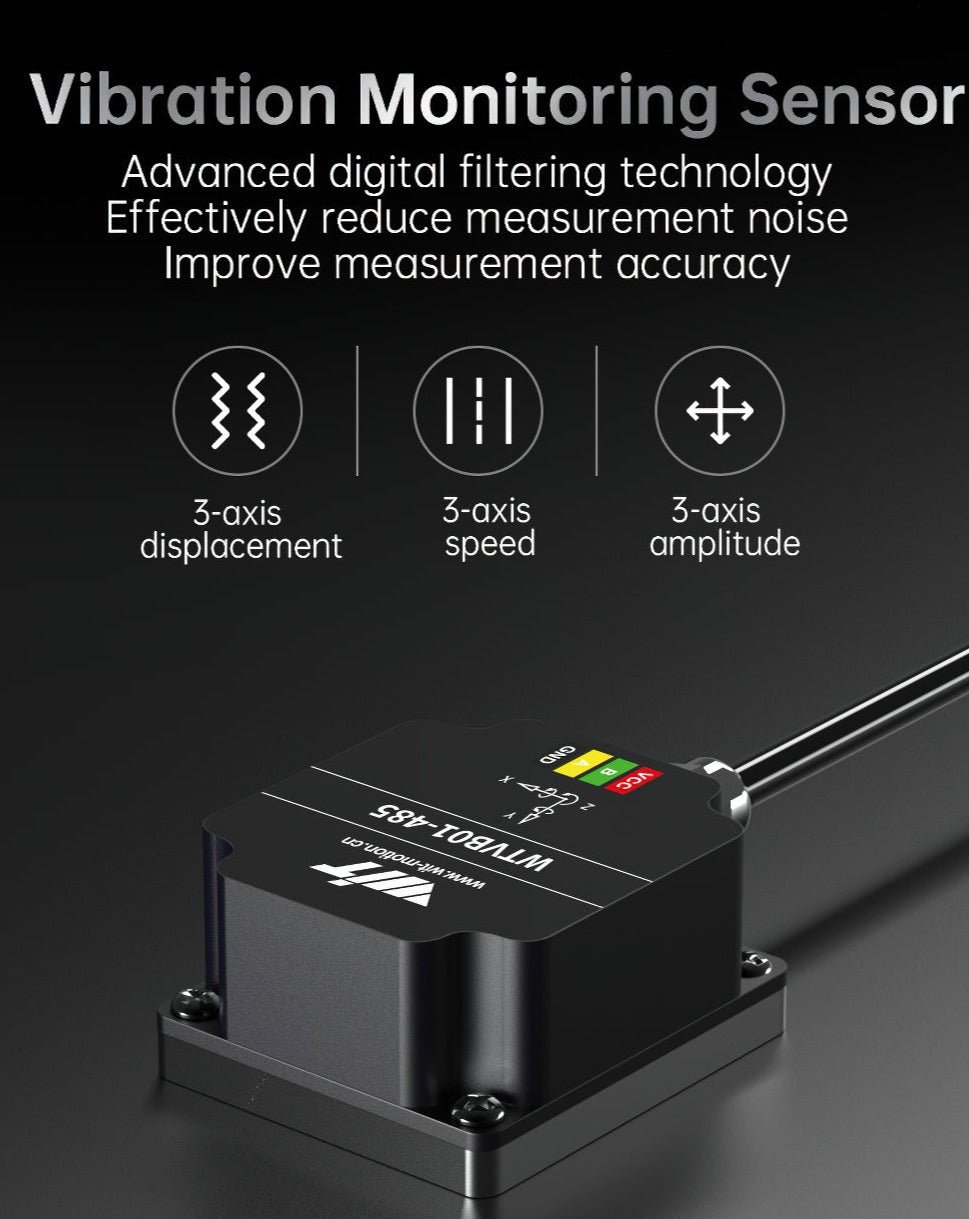

This industrial vibration sensor is engineered for comprehensive 3-axis condition monitoring of motors and rotating machinery. Featuring a built-in voltage stabilization circuit (9V~36V) and advanced digital filtering technology, it minimizes measurement noise while ensuring high accuracy. Supporting RS485 Modbus communication with adjustable baud rates, it seamlessly integrates into your control system and provides acceleration, velocity, displacement, frequency, and temperature data. With flexible magnetic or threaded mounting options, it effectively detects early faults like bearing wear or misalignment, preventing unexpected downtime and extending equipment lifespan.
Synchronous 3-Axis Measurement
Capture synchronized X/Y/Z data on the same time base. This 3-axis industrial vibration sensor delivers accurate, real-time readings for early fault detection, ensuring reliable diagnostics for rotating machinery.
WTVB01-485 vs. WTVB02-485 Selection
Choose the ideal industrial vibration sensor for your setup. The WTVB01-485 suits routine motor monitoring (5-100 Hz, 1 kHz), while the WTVB02-485 delivers broadband analysis (5-2000 Hz, 16 kHz).
Complete Vibration Monitoring Solution
This vibration monitoring solution connects sensors, pumps, and data transmission for smarter equipment maintenance. It enables seamless online analysis and signal alarms to prevent unexpected downtime.

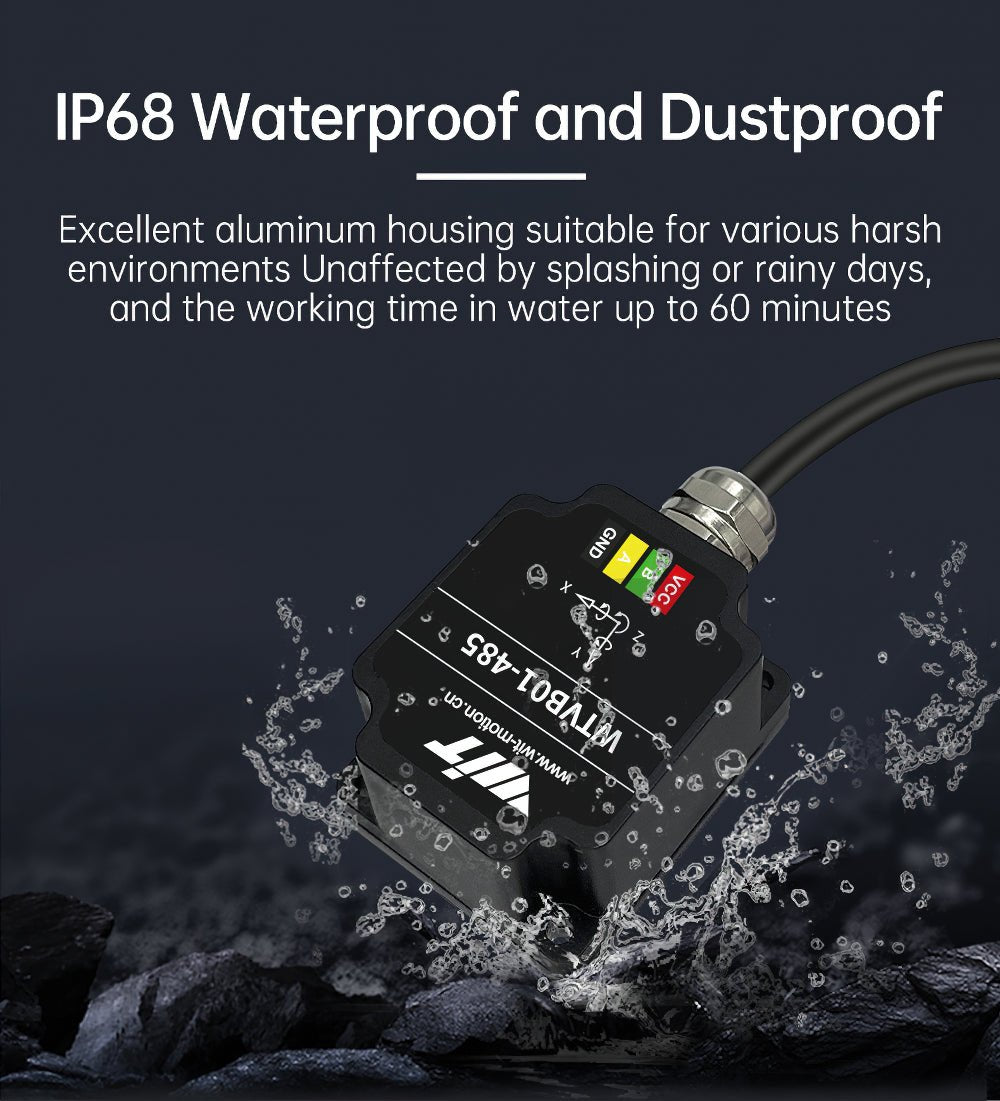

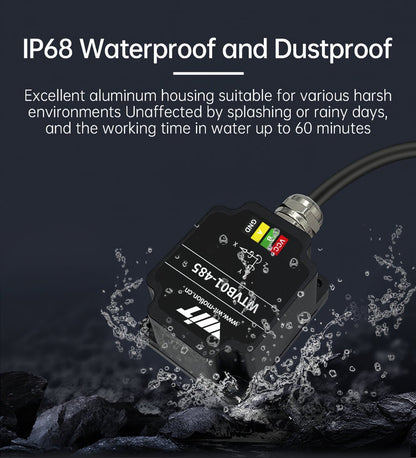

Rugged IP68 Protection
With an IP68 waterproof and dustproof rating, this industrial vibration sensor is built for harsh environments. It ensures rugged reliability and stable data for continuous motor and pump monitoring.

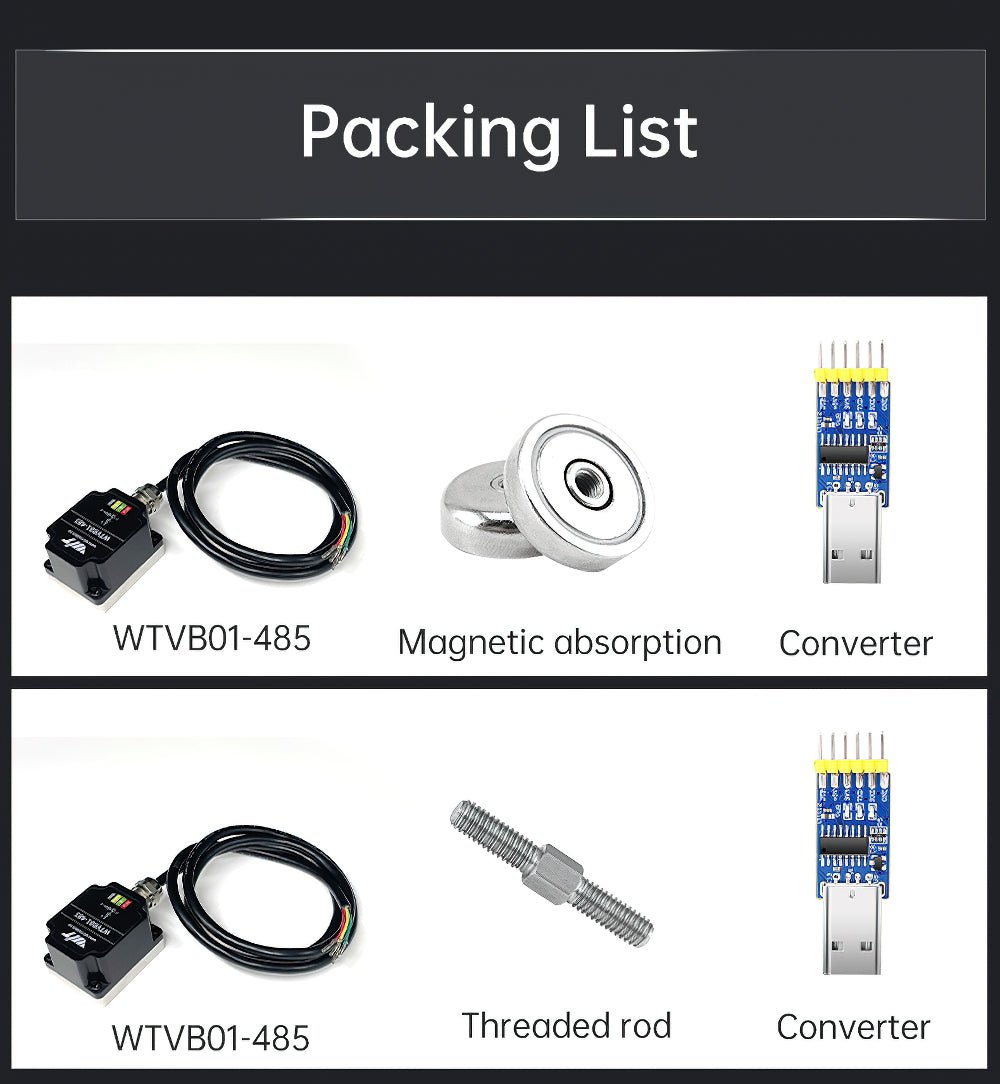

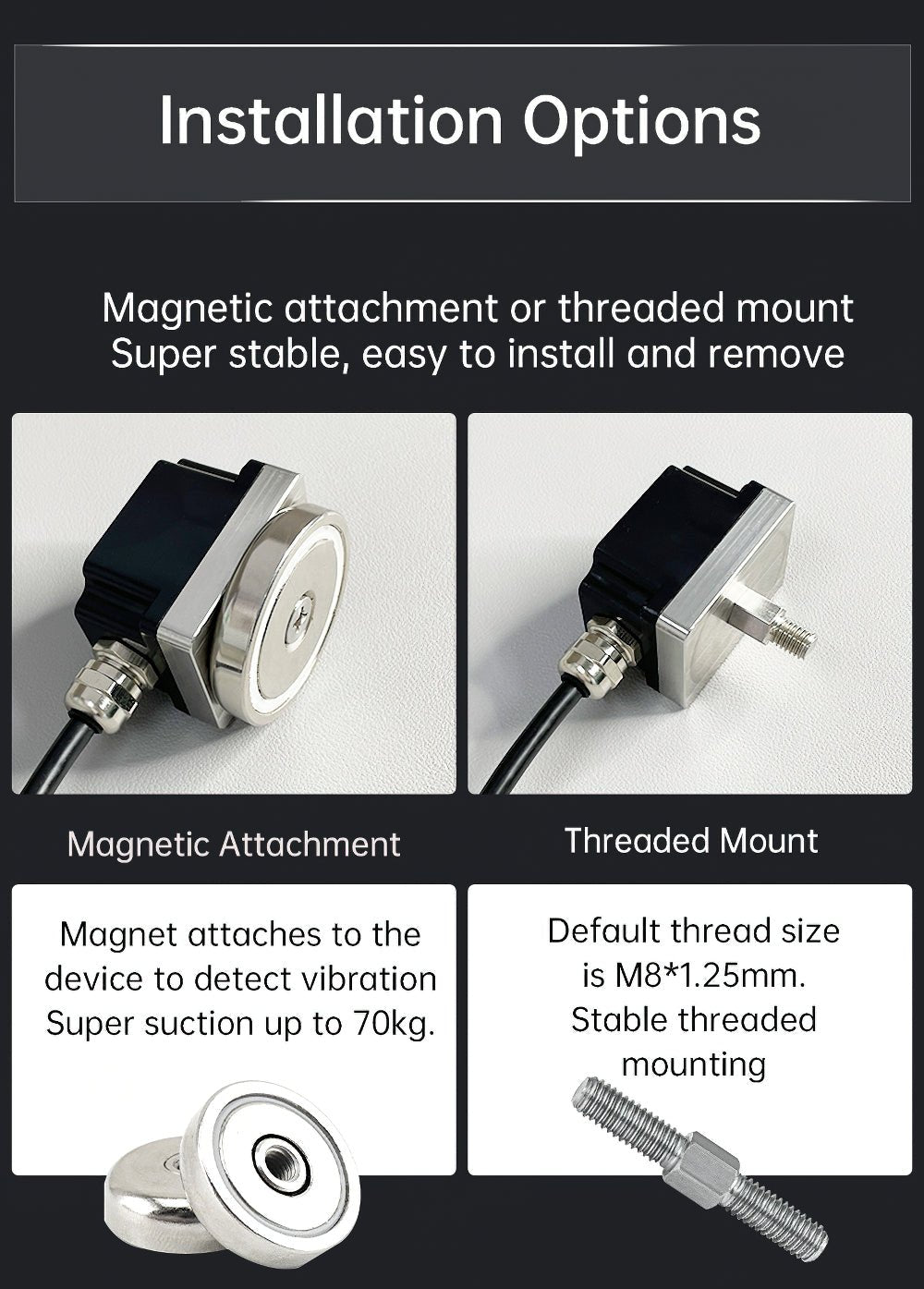

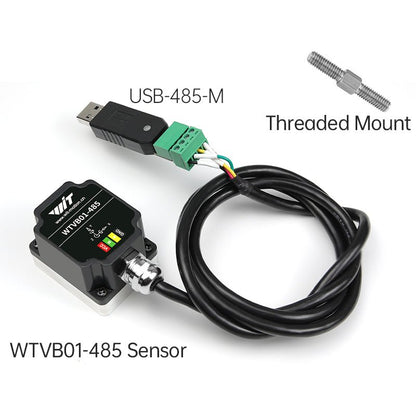

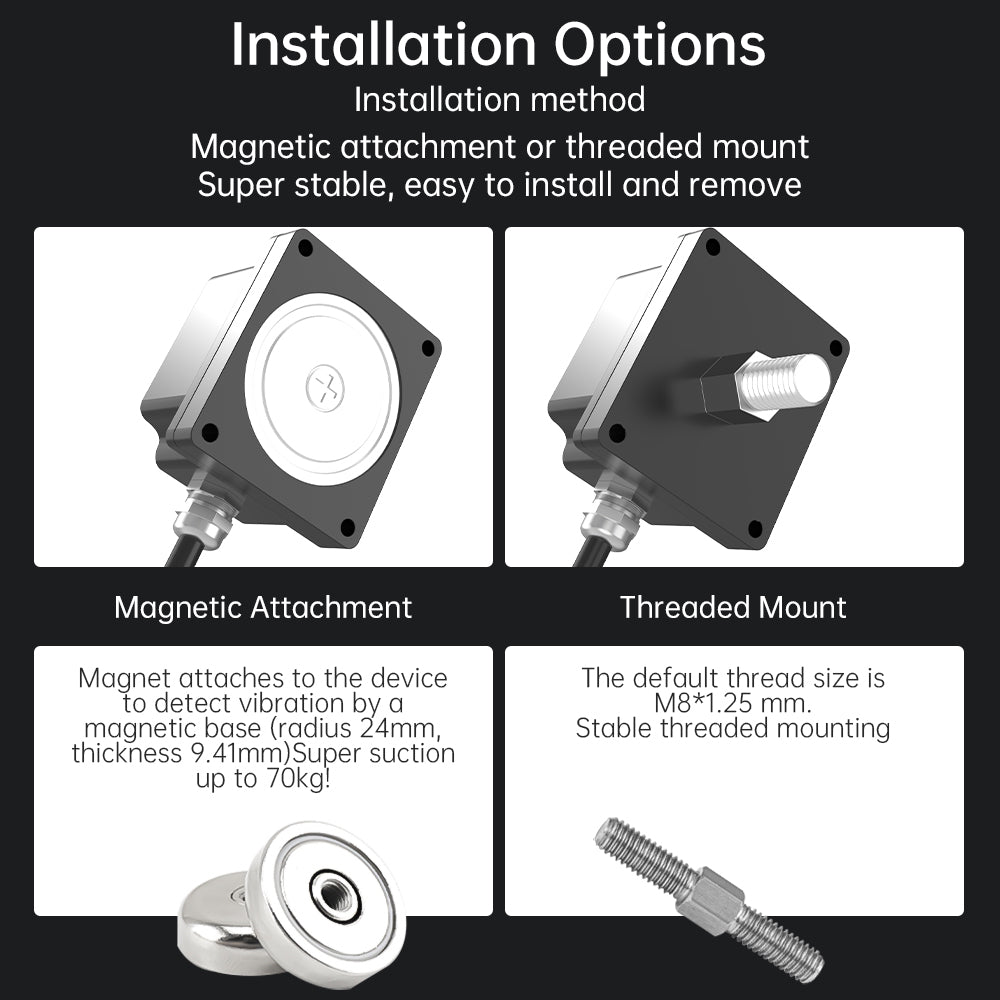

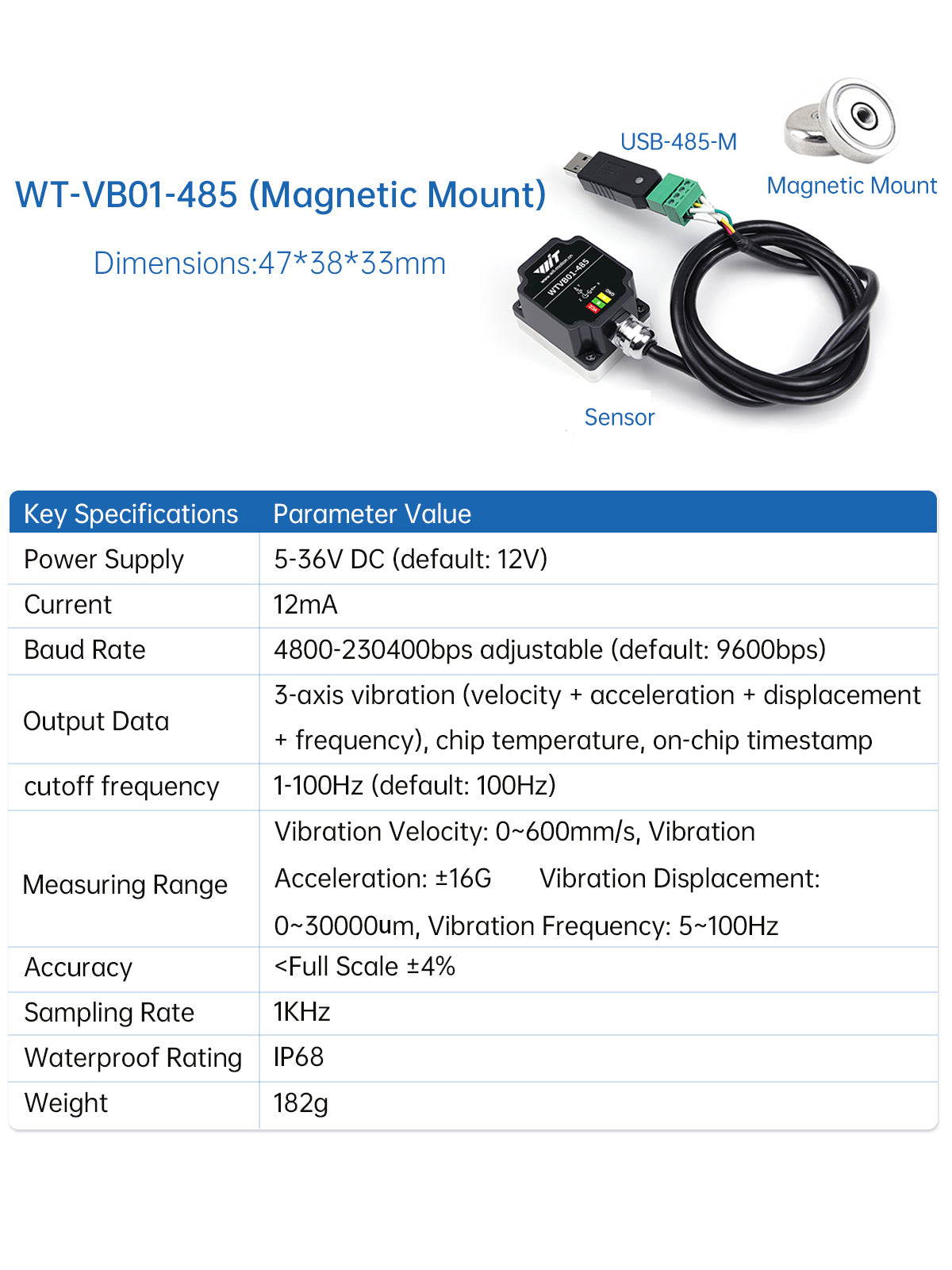

Flexible Installation Options

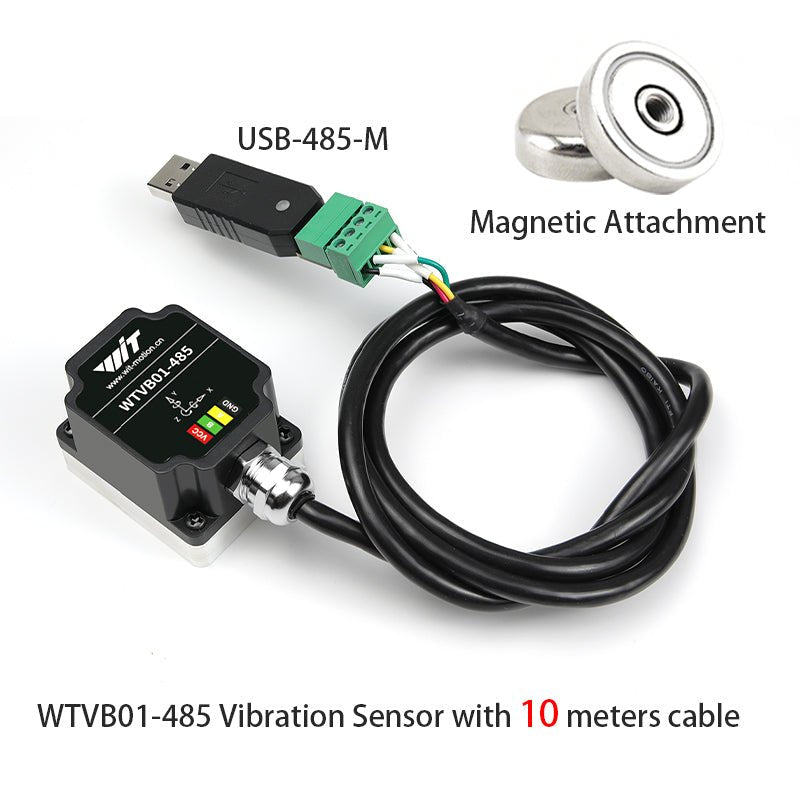

Choose between magnetic (70kg suction) or threaded (M8*1.25mm) mounting. Both methods ensure a secure, stable hold for your industrial vibration sensor with quick installation and removal.otion trajectory analysis.

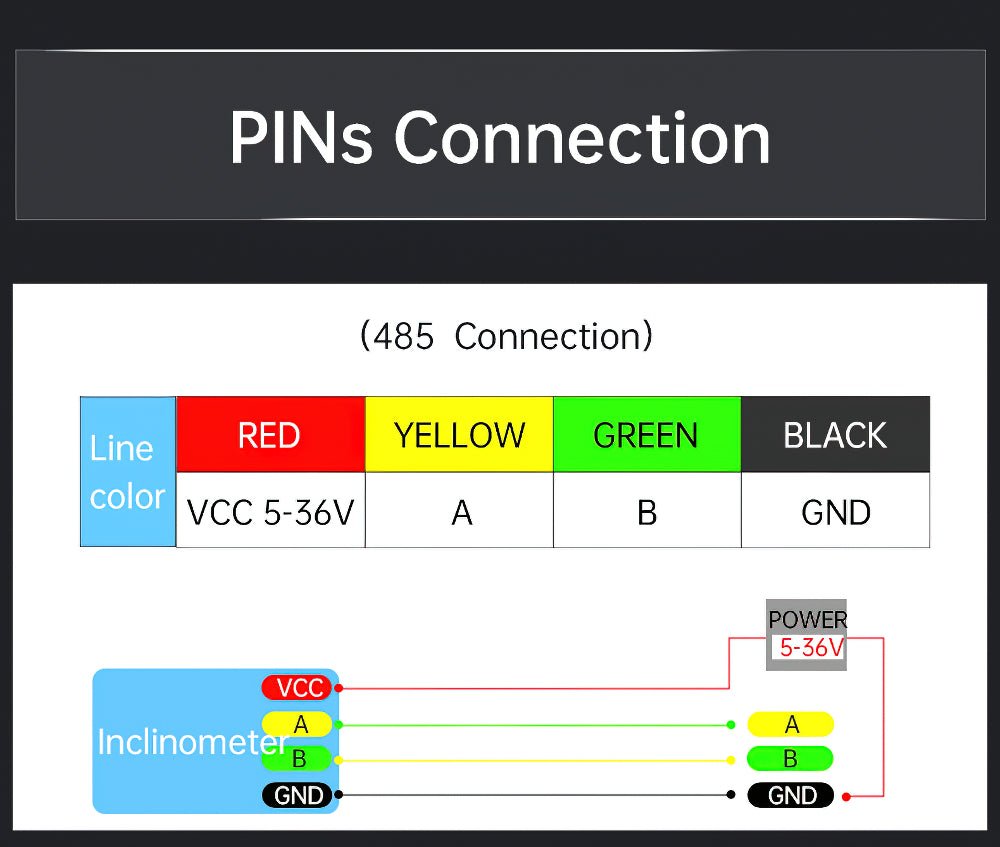

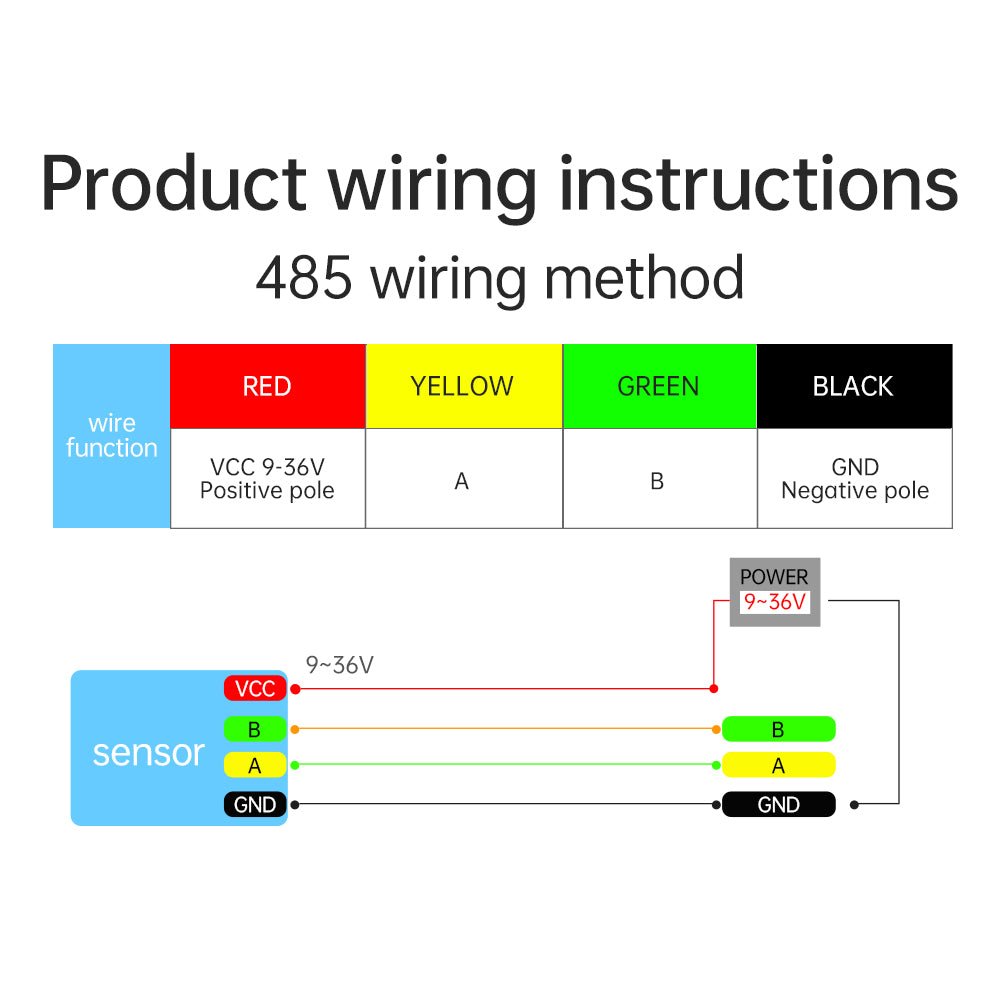

Efficient RS485 Wiring
Supports wide voltage (9-36V) for easy industrial integration. The 4-wire design (VCC, A, B, GND) simplifies connections, with a USB setup for quick PC configuration.
Solution 1: Single-Point Monitoring

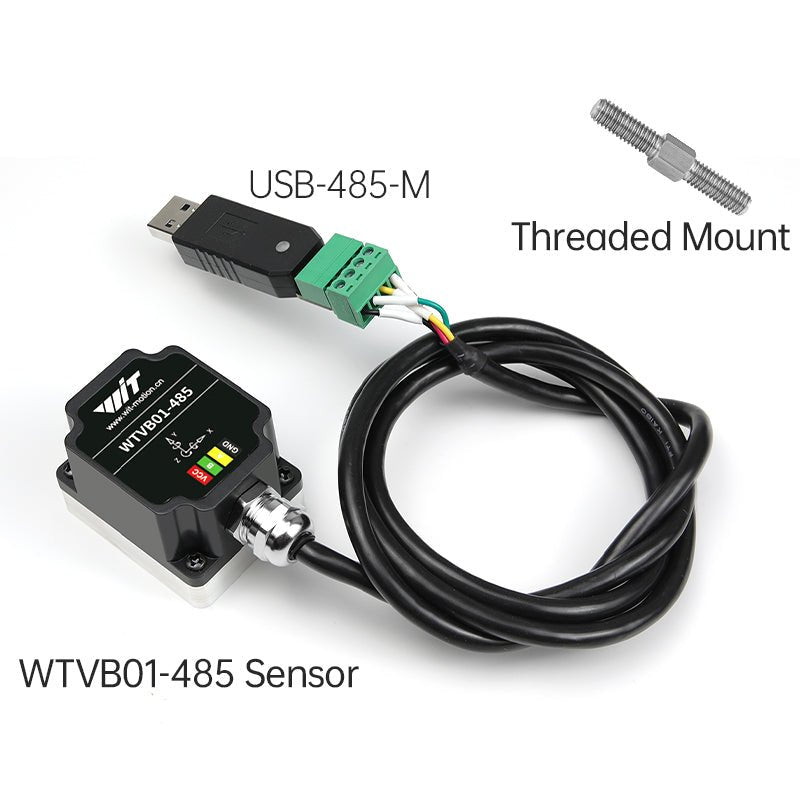

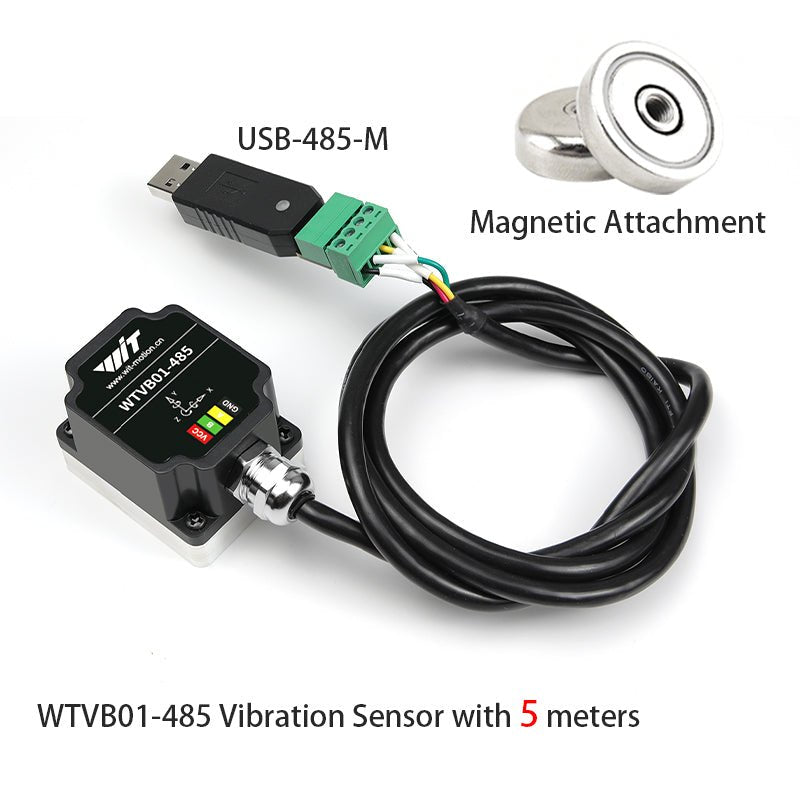

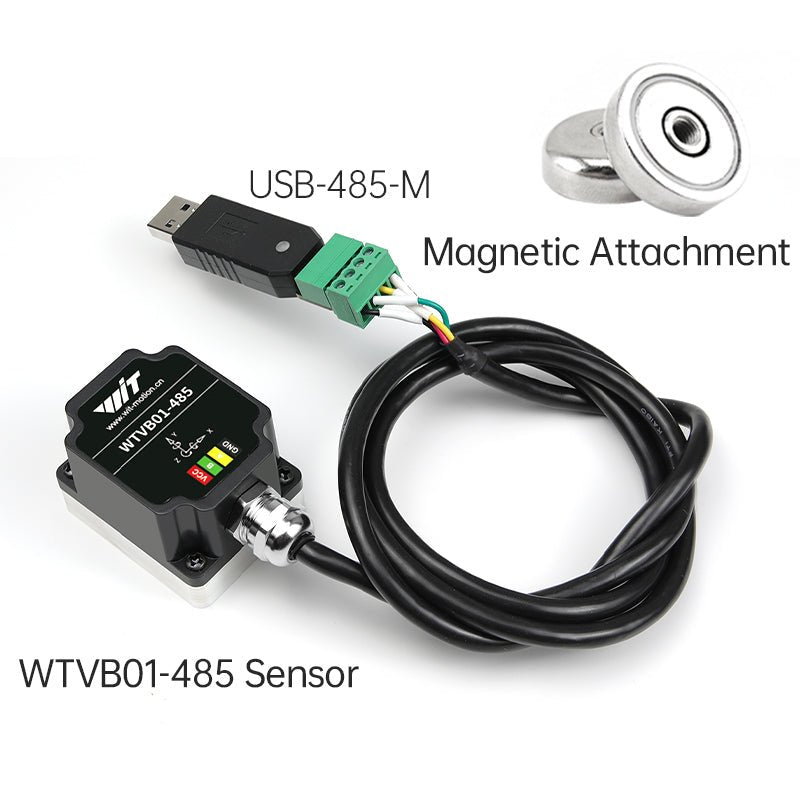

Connect a vibration sensor via RS485 to a USB converter for local PC monitoring. This setup is ideal for equipment commissioning, temporary testing, and single-machine status monitoring.

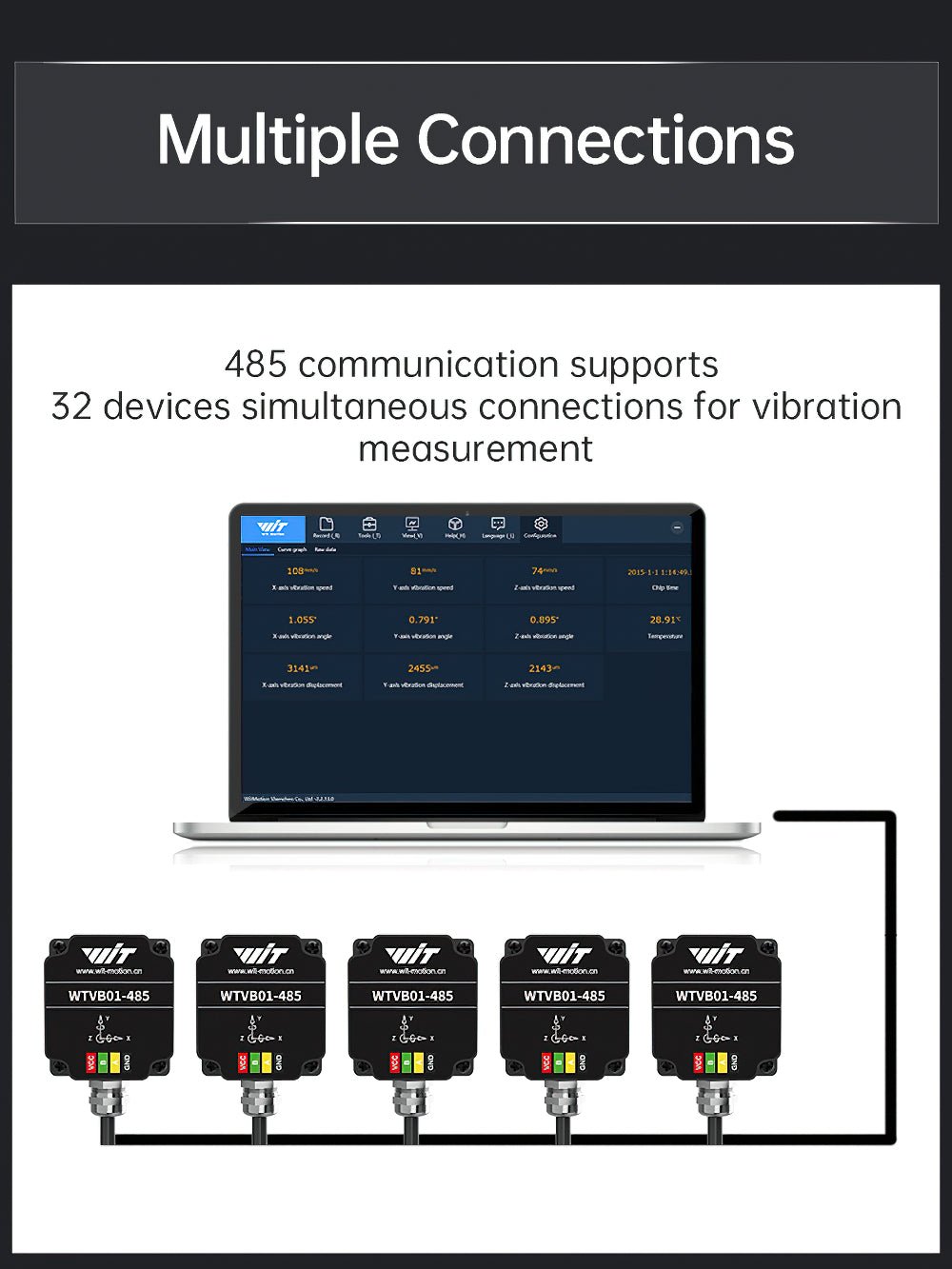

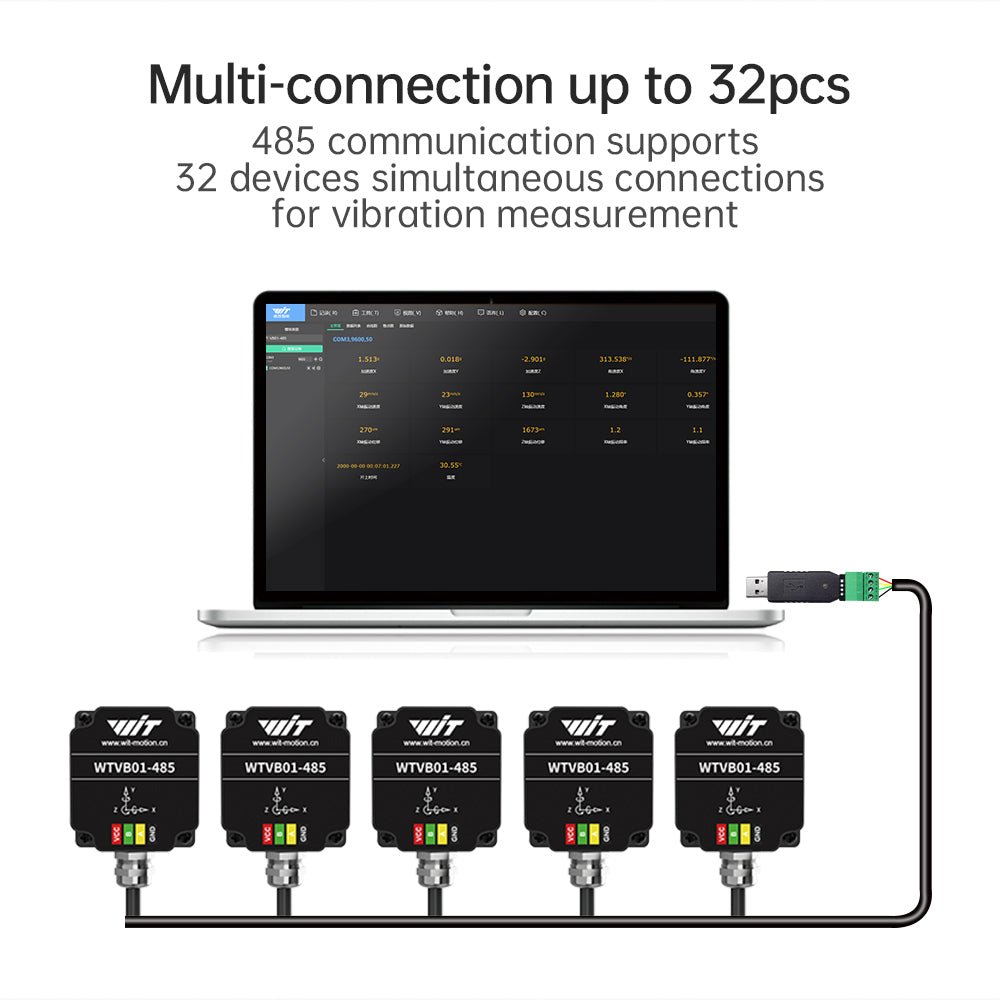

Solution 2: Multi-Point Bus Monitoring
Connect multiple sensors on a single RS485 bus with independent device addresses. This enables flexible centralized data acquisition for motors, pumps, gearboxes, and fans.
Solution 3: Remote Monitoring
Use an external RS485 gateway or data collector to enable remote data viewing. Achieve centralized analysis via Ethernet or 4G networks for smarter equipment maintenance.

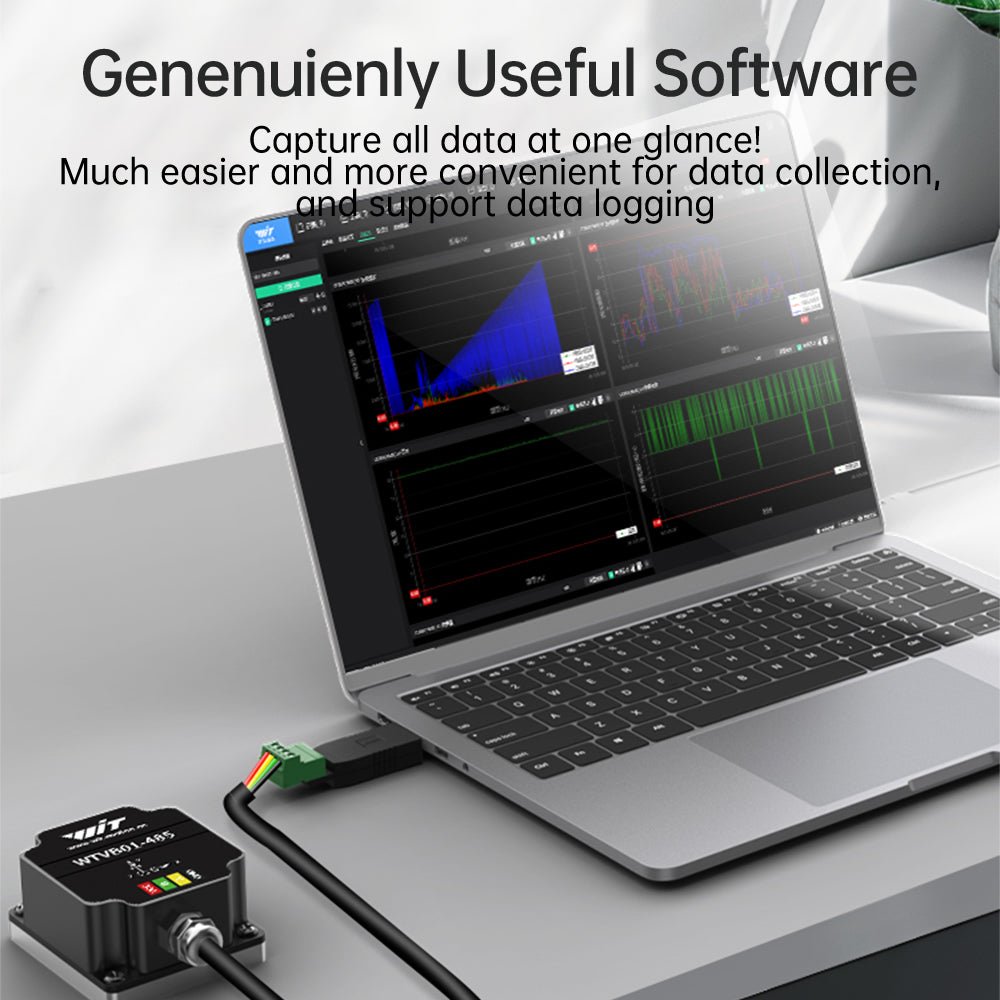

Real-Time Multi-Parameter Monitoring

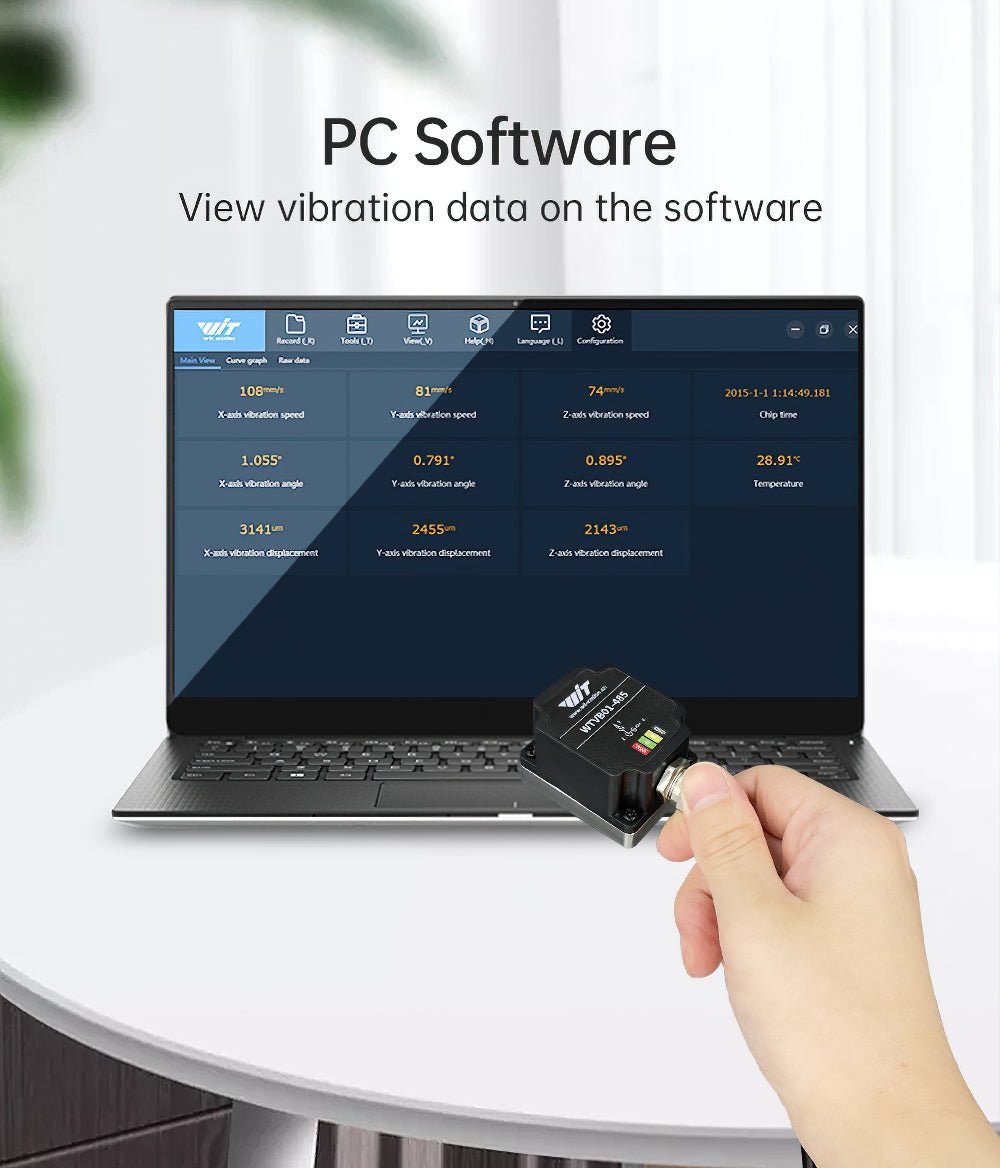

View live 3-axis acceleration, velocity, displacement, frequency, and temperature. This dashboard provides instant motor vibration monitoring for rotating machinery.
Visualized Trend Analysis
Display dynamic graphs of vibration trends over time. This time-domain waveform visualization helps you quickly identify abnormal patterns for early fault detection.
Frequency & Data Packet Analysis
Track specific vibration frequency trends and data packet rates with precision. This feature ensures stable RS485 Modbus communication and accurate bearing fault diagnosis for your rotating machinery.
High-Speed Spectrum Analysis
Support 16KHz high-speed sampling with detailed frequency spectrum graphs. It precisely captures high-frequency impacts for deep bearing fault diagnosis.
Data Logging & Export
Easily record and export vibration data in CSV, MATLAB, or TXT formats. This feature enables detailed offline analysis for your industrial vibration sensor.
RS485 Modbus Communication
Monitor raw hexadecimal data to verify stable communication. It seamlessly integrates with PLC or SCADA systems via standard RS485 Modbus protocol.

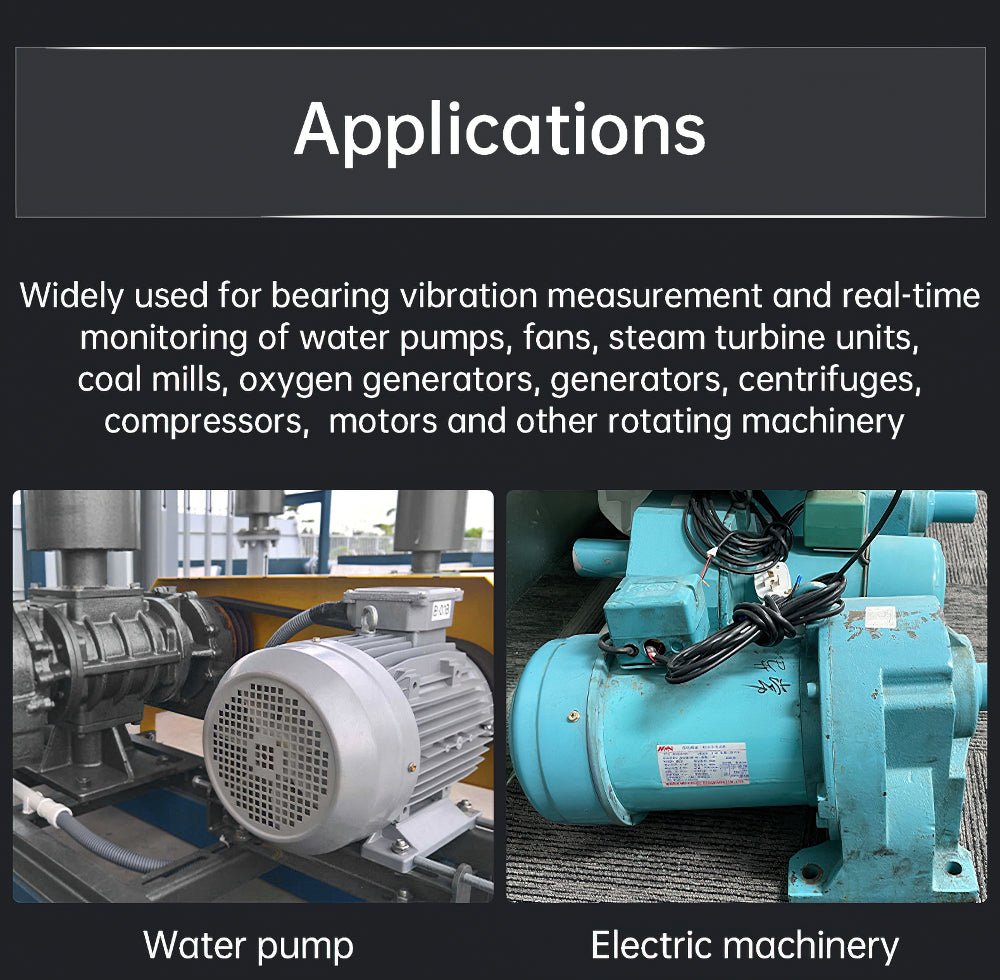

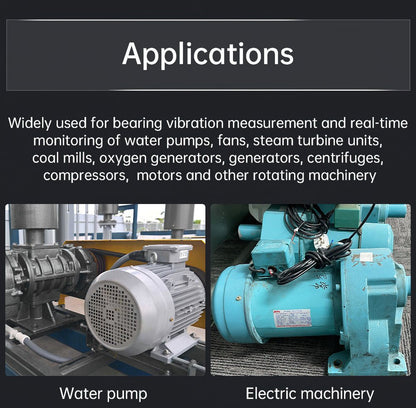

Application Scenarios
01 Industrial Motors
As a leading motor vibration sensor, our WTVB01-485 provides continuous 3-axis vibration monitoring for industrial motors. Tailored as one of the most reliable vibration sensors for motors, it acts as a comprehensive industrial motor vibration monitor, tracking equipment condition and trends in real-time. By identifying early signs of bearing wear, cracking, poor dynamic balance, or misalignment, this motor vibration monitoring sensor issues timely trend alerts—preventing unexpected downtime and extending motor lifespan via standard industrial vibration sensor modbus communication.
02 Air Compressors
Capture critical broadband vibration and sudden impact events for advanced condition analysis. Designed specifically for high-speed machinery, the WTVB02-485 serves as a highly precise vibration sensor for motor applications in air compressors. It utilizes an rs485 modbus vibration sensor architecture, making it an ideal rs485 modbus vibration transducer for seamless integration into your SCADA or PLC systems. This enables maintenance teams to perform accurate condition assessments and detect potential mechanical faults before they escalate into severe operational failures.
03 CNC Machine Tools
Maintain peak machining precision with continuous line monitoring tailored for CNC machine tools. The WTVB02-485 tracks vibration trends across the production line, functioning as a robust industrial motor vibration monitor to provide actionable data for inspections, maintenance scheduling, and overall line condition management. With robust trend logging, this motor vibration monitoring sensor empowers facilities to transition to preventive maintenance, minimizing unplanned line stoppages.
04 Power Generation
Protect your power generation assets with reliable, around-the-clock vibration tracking. The WTVB02-485 is optimized for energy equipment monitoring, offering operation monitoring, data logging, and immediate trend alerts. As a dependable motor vibration sensor, it continuously tracks vibration levels to help operators seamlessly plan maintenance schedules, ensuring the longevity and safety of turbines, generators, and other critical energy infrastructure.
05 Industrial Cooling Towers
Ensure efficient operation of your thermal management systems by monitoring fans, motors, pumps, and compressors. Featuring an ip67 waterproof pump vibration sensor design, the WTVB01-485 and WTVB02-485 are built to withstand harsh, humid environments. Whether you need a dedicated pump vibration sensor or a vibration sensor for motor assemblies, our devices help you track vibration conditions and trends in real-time. This drives efficient O&M (Operations & Maintenance), reducing energy consumption and preventing costly HVAC and refrigeration breakdowns.
