WTVB01-BT50 Bluetooth 5.0 Vibration Sensor – Wireless Triaxial Monitoring with 8H Battery Life

$29.00
$28.50 $29.00
Shipping calculated at checkout.
WT901SDCL - BT50 - Accelerometer+Inclinometer - mpu6050 - mpu9250+Angle Sensor Gyroscope for Arduino Magneometer.
$29.00
$28.50 $29.00





inertial measurement unit

Product Description

Get precise 3-axis vibration data with the WTVB01-BT50 wireless vibration sensor. Featuring Bluetooth 5.0, advanced digital filtering algorithms, and a built-in rechargeable battery, it provides real-time vibration monitoring for velocity, angle, displacement, and frequency. A reliable, IoT vibration sensor and vibration monitoring device for predictive maintenance, effectively preventing unexpected downtime in industrial rotating equipment.

inertial measurement unit

How the Vibration Monitoring System Works

Experience a complete vibration monitoring system workflow: The vibration sensor is mounted directly on the pump to continuously detect anomalies. The signal acquisition device gathers raw data, which is then transmitted via secure data transmission to the system processor. The data undergoes online analysis, providing instant visual feedback and triggering precise signal alarms for immediate, proactive intervention.

产品1

Bluetooth 5.0

Stable transmission up to 50m in open areas with multi-device cascading, acting as an efficient vibration transmitter for remote data collection.

产品2

Compact & Wireless

Lightweight design (18.2g) for easy mounting on various rotating machinery, serving as a highly portable smart vibration sensor.

产品2

8h Battery Life

Ultra-low power consumption with a long-lasting 260mAh battery, ensuring continuous wireless vibration monitoring without frequent recharging.

产品2

USB-C Port

Rechargeable interface with fast 5V charging and wired UART support, offering flexibility as a vibration detection sensor.

inertial measurement unit

Advanced Digital Filtering & FFT Spectrum Analysis

WitMotion's R&D aerospace-grade algorithms are seamlessly integrated with advanced digital filtering and FFT spectrum analysis. This combination effectively filters out environmental noise while preserving essential vibration features, ultimately delivering high-fidelity data for precise vibration measurement. It ensures that every vibration monitor provides extremely accurate, actionable insights for complex industrial environments.

产品1
产品2
产品1
产品2
产品1
产品2
产品1

Complete Development Support

Complete PC software, APP, SDKs, and technical manuals provided for easy secondary development, perfect for building your own remote vibration sensor solutions.

产品2

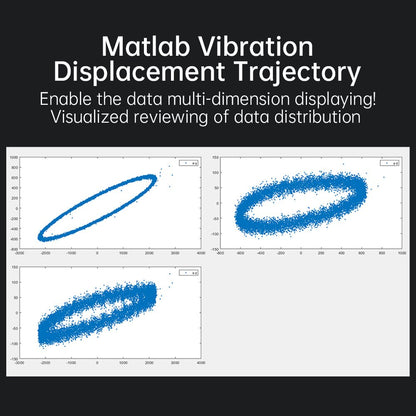

Intuitive Visual Analysis

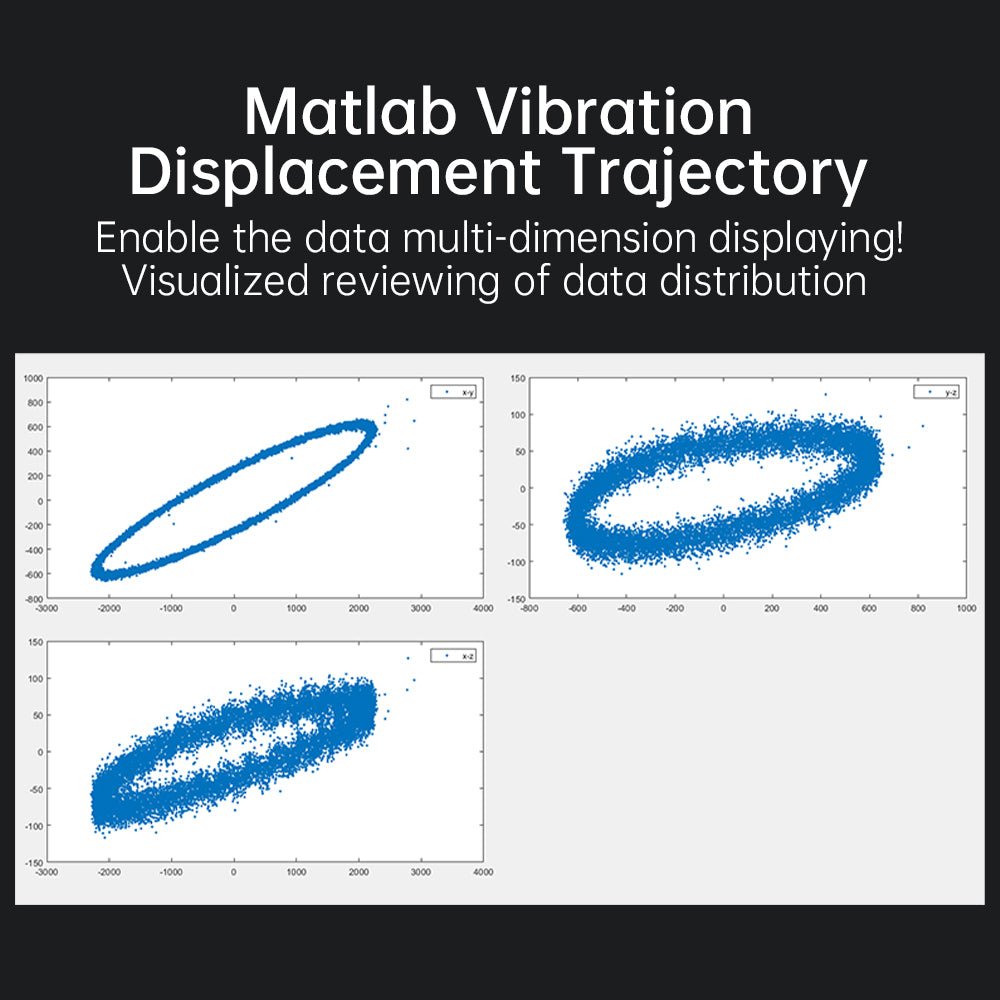

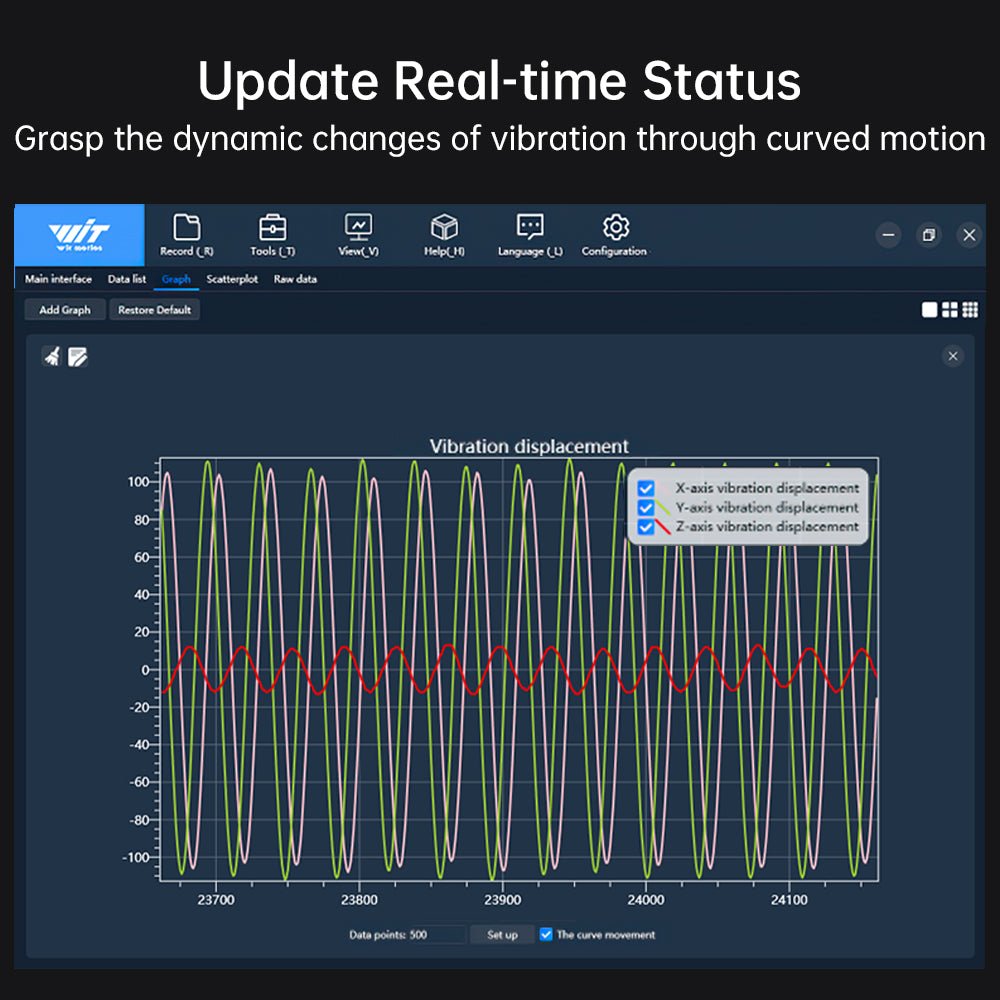

Transform raw data into clear graphs, motion trajectories, and 3D attitude models for instant trend insights and rapid diagnosis.

产品2

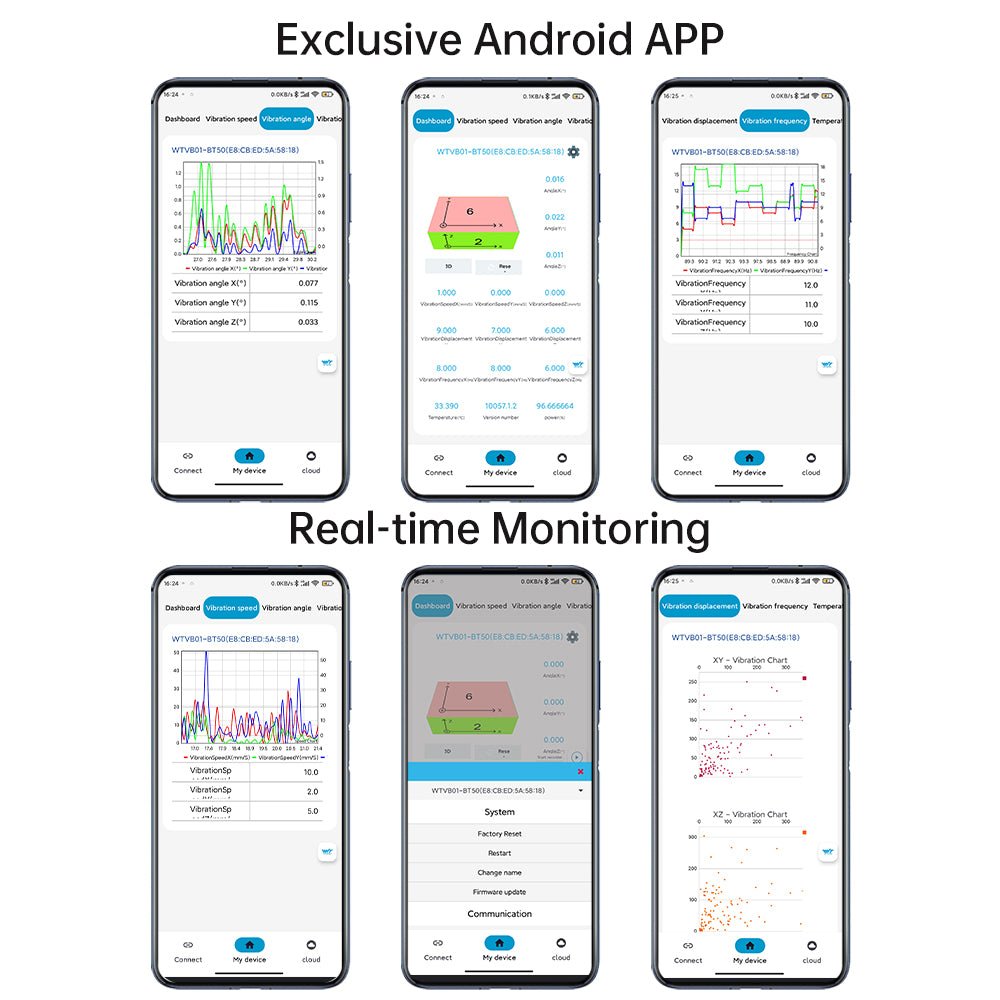

Real-time Multi-Device Sync

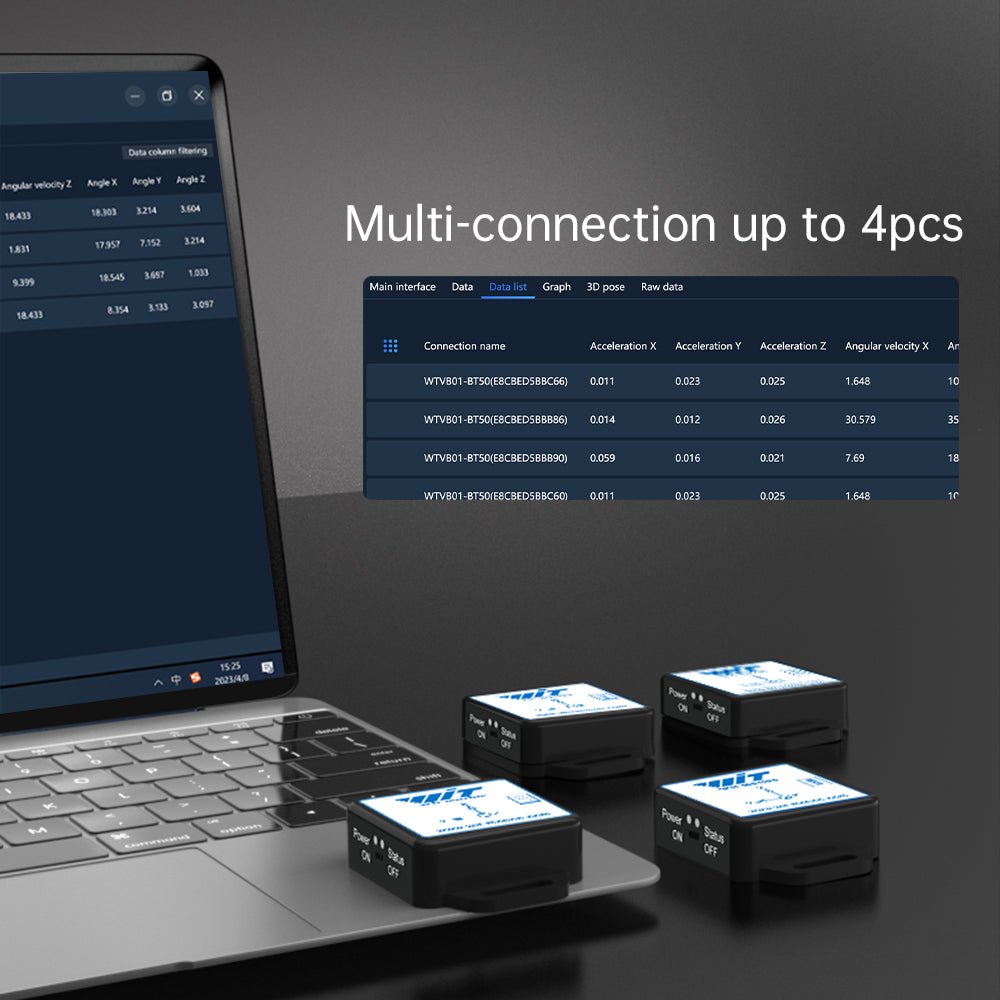

Real-time data updates across 4 sensors simultaneously. Includes live dashboard, configuration, curve display, and data logging, efficiently operating as a compact vibration monitoring system.

轮播海报1
轮播海报2
轮播海报3
轮播海报4
轮播海报5

产品1
产品2

Why WitMotion Vibration Sensor?

Unchecked motor vibration leads to catastrophic losses:

① It shortens the winding insulation and bearing life.
② Vibrational forces reduce insulation resistance, increase leakage currents, and cause breakdown accidents.
③ Cooler water pipes easily crack due to excessive vibration.
④ It causes abnormal wear on carbon brushes and slip rings.
⑤ Long-term vibration loosens foundation bolts and deforms the foundation structure.
⑥ Thermal deformation caused by vibration compromises machine precision.
⑦ Worst of all, it leads to unnecessary waste of funds on idle repair parts.

inertial measurement unit

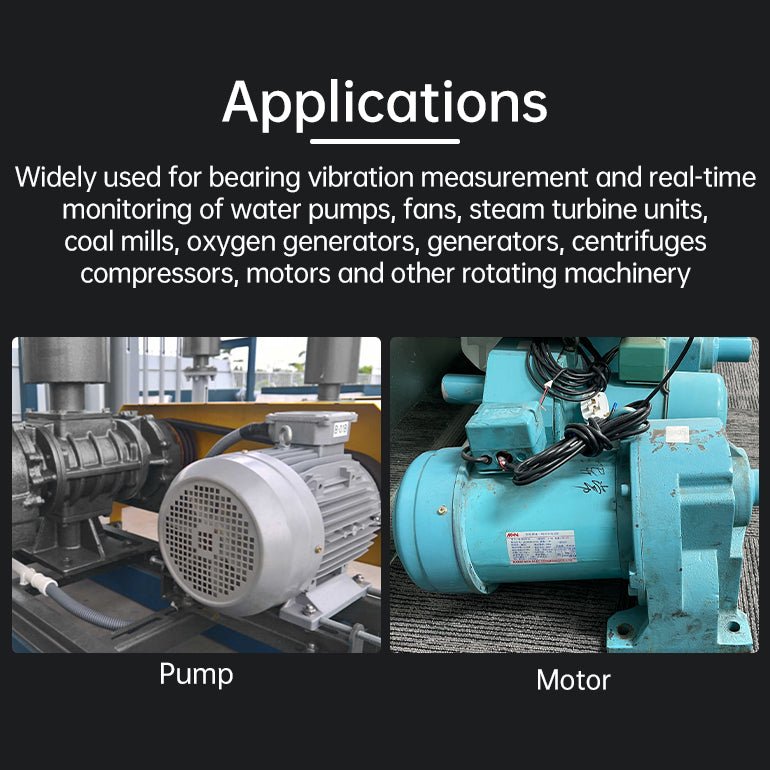

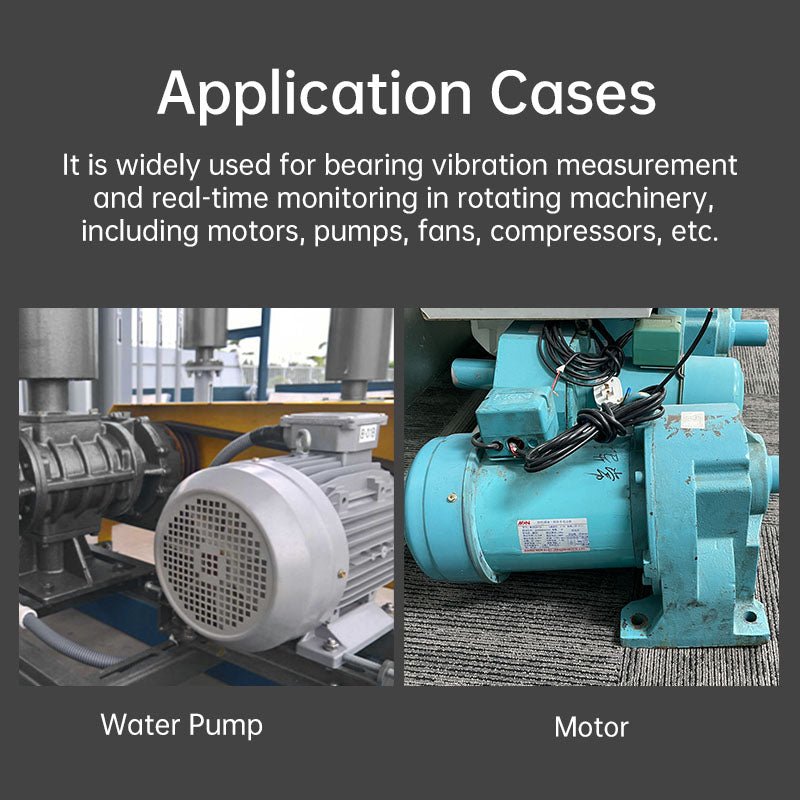

Application Scenarios

应用场景1

01 Industrial Motors

The heartbeat of your production line. Real-time vibration monitoring detects early signs of rotor failure, misalignment, and bearing damage, significantly reducing unplanned downtime and extending the lifespan of your critical machinery.

02 Submersible Pumps

Detect impeller imbalance and bearing wear in deep-water operations. Our wireless vibration sensor provides early fault detection, preventing catastrophic failures and costly salvage operations, ensuring continuous water supply and maximum uptime.

03 Industrial Fans

Monitor blade dynamic balancing and motor health in harsh, dusty environments. Advanced vibration analysis provides an early warning system against unexpected breakdowns, ensuring the smooth operation of your ventilation and dust extraction systems.

应用场景4

04 Air Compressors

The essential heart of pneumatic systems. Our compact vibration sensor ensures stable system pressure and valve health by continuously tracking vibration trends. It allows for precise predictive maintenance, preventing costly shutdowns in your compressed air network.

应用场景5

05 Steam Turbines & Generators

Capture micro-vibrations in high-speed power generation equipment. By monitoring bearing condition and rotor dynamics in real time, this sensor boosts energy efficiency, ensures grid stability, and prevents catastrophic turbine damage.

应用场景6

06 Centrifuges & Oxygen Generators

Ensuring absolute operational safety in high-speed chemical and medical separation. Our sensor provides unmatched high-frequency monitoring for rotating parts, safeguarding critical equipment against unexpected failures and guaranteeing production quality.

07 Water Towers & Pumping Stations

Built to operate in extreme dust and high-load conditions. The robust wireless sensor continuously tracks bearing integrity and load imbalances, effectively extending equipment lifespan, preventing catastrophic breakdowns, and keeping heavy production lines running.

应用场景8

08 Coal Mills & Heavy Mining

Built to operate in extreme dust and high-load conditions. The robust wireless sensor continuously tracks bearing integrity and load imbalances, effectively extending equipment lifespan, preventing catastrophic breakdowns, and keeping heavy production lines running.

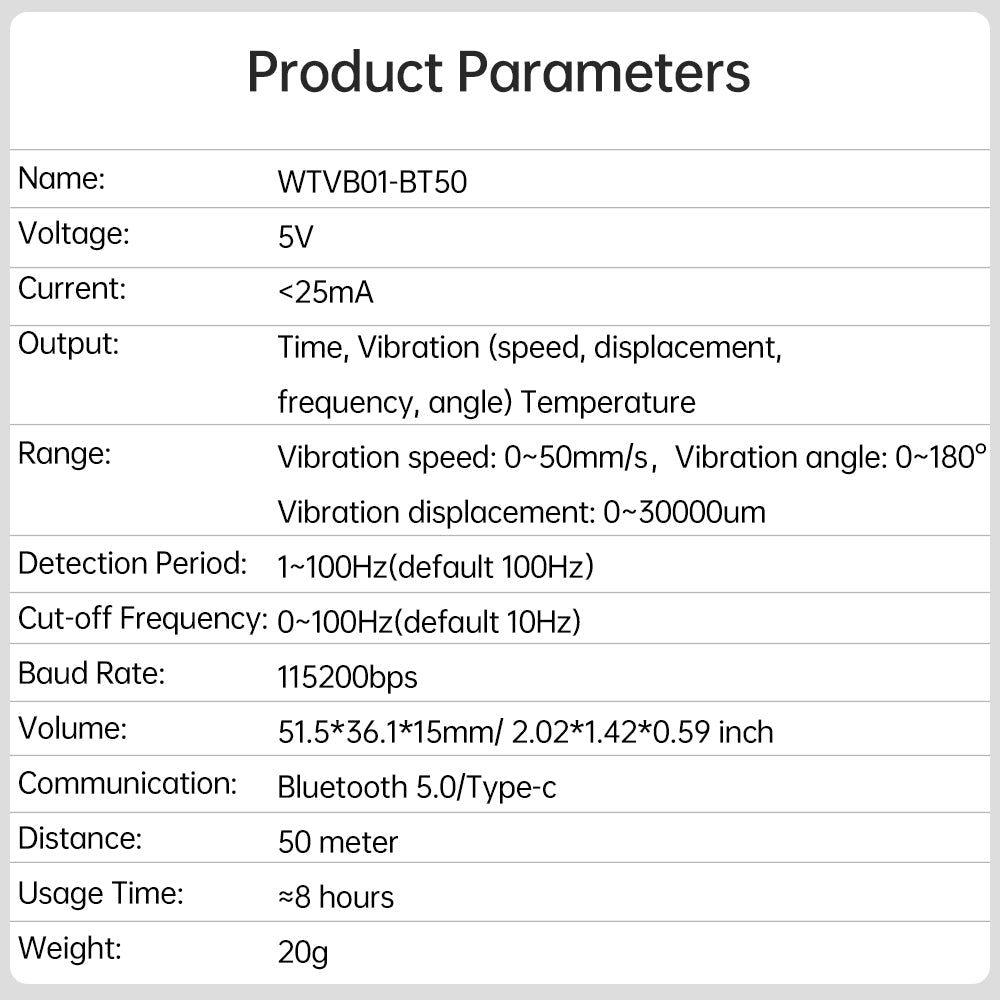

Product WTVB01-BT50
Operating Voltage 5V
Current <25mA
Output content Time, Vibration Velocity, Vibration Displacement, Vibration Frequency, Vibration Angle
Range Vibration Velocity: 0~50mm/s, Vibration Angle: 0~180°, Vibration Displacement: 0~30000um
Sampling Rate 1~100Hz (default 100Hz)
Bandwidth 0~100Hz (default 10Hz)
Baud Rate 115200bps

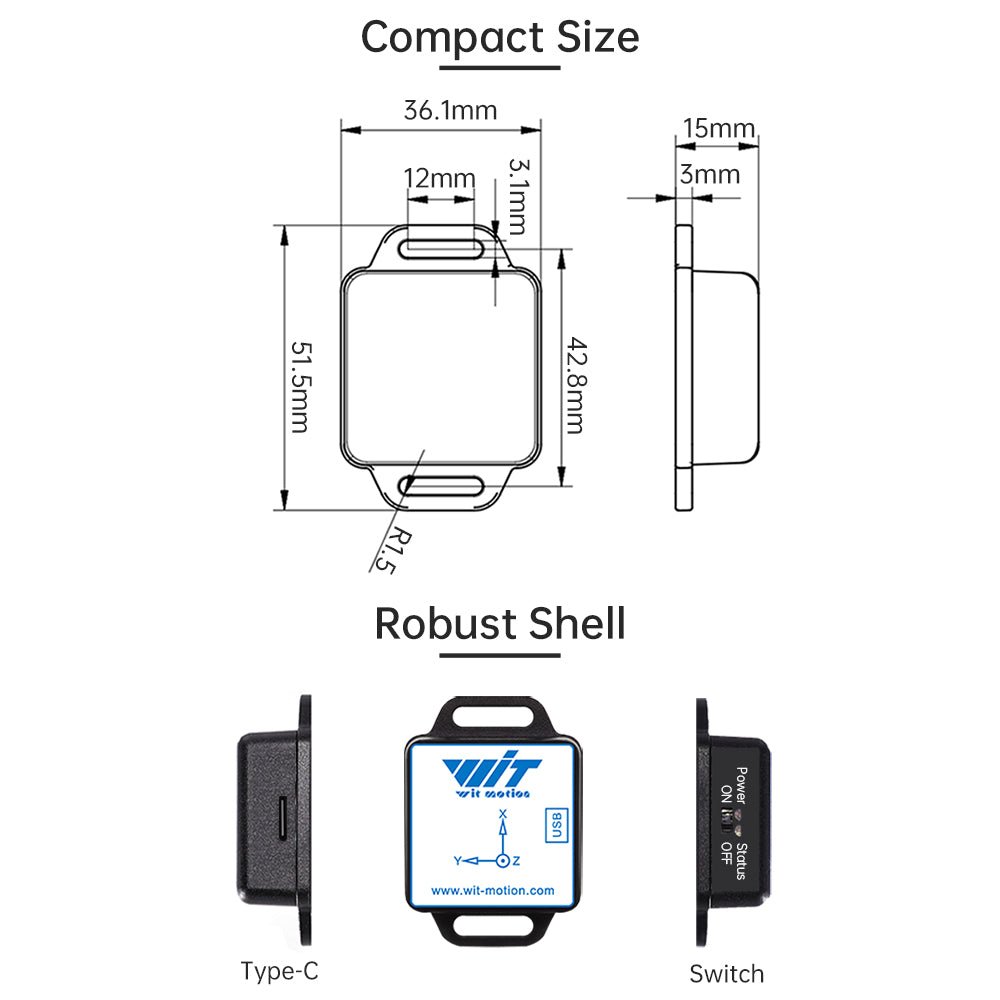

Dimensions 51.5 x 36.1 x 15mm
Communication Bluetooth 5.0 / Type-C
Transmission Range 50m
Usage time ≈8 hours
Weight 20g

Technical Documentation

Click "View" to open the document in WitMotion Drive.

Universal Software & Drivers
View
WTVB01-BT50 Manual
View
SDK
View
What is the function of the chip's internal temperature monitoring?

It is used to monitor the chip temperature in real time to prevent device malfunctions caused by excessive chip temperature.

The files recorded by the mobile APP cannot be replayed on the PC software.

The files recorded by the mobile APP are in TXT format and cannot be replayed on the PC software. To replay on the PC software, a raw hexadecimal recording file in .play format, which is generated by the PC software itself, is required.

The mobile APP disconnects after the phone screen turns off, and only 2 minutes of data is recorded in a 20-minute session.

The mobile APP cannot be left in the background or have the screen turned off, otherwise the app will automatically disconnect and stop recording data. This is why no data is recorded when the screen is off.

What does Accuracy < ±5% F.S. mean?

It means the measurement error of the device does not exceed 5% over the full Measurement Range.

What does Accuracy < ±5% F.S. mean?

The ideal measurement environment is when the vibration amplitude is greater than 50um and the Vibration Frequency is between 10-100Hz. For Vibration Frequencies below 10Hz, the vibration behavior can still be detected, but the accuracy of Vibration Displacement and frequency is not very precise. For other conditions, it is recommended to perform actual testing and refer to the real test results.
