[WT9011DCL] Ble 5.0 Acce+Gyro+Angle compact Sensor, 40h Battery life

Accelerometer Sensor

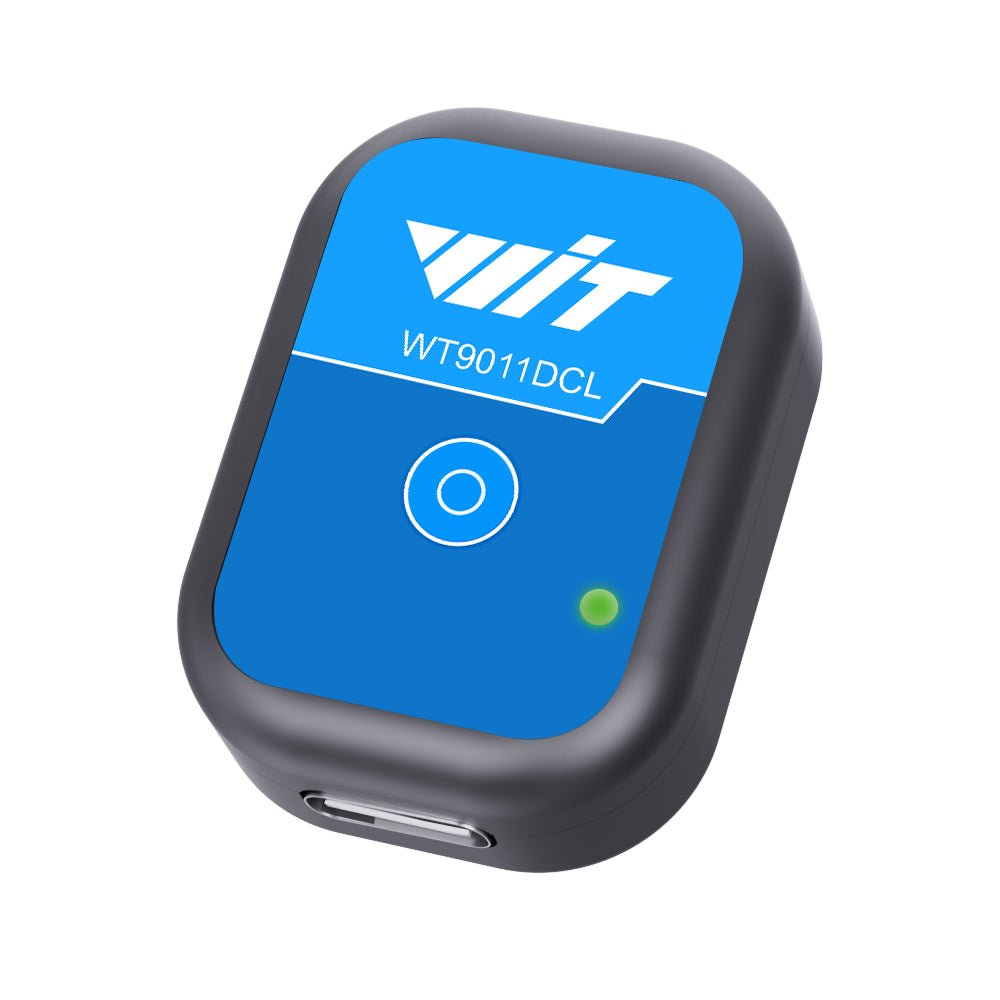

WT9011DCL Accelerometer Sensor

Accelerometer + Magnetometer + Gyroscope

• Accelerometer sensor Output data】3-axis acceleration, 3-axis angular velocity, 3-axis magnetic field, 3-axis angle and quaternion.
• 【Core Advantages】The WT9011DCL inclinometer integrates an attitude solver, which, in conjunction with the dynamic Kalman filter algorithm, can accurately output the current attitude of the module in a dynamic environment. The accelerometer sensor measurement accuracy is 0.2°, the stability is extremely high, and the performance is even better than some professional inclinometers.
• 【Technical advantages】Solved the cumulative error caused by the drift of gyroscope integration in the 6-axis algorithm.
• 【Output frequency】The output content can be selected arbitrarily, data output frequency: 0.2Hz~200Hz, 50Hz~200Hz data package transmission, default 10HZ.
• 【Production process】The inclinometer sensor module uses 4-layer PCB board process, thinner, smaller and more reliable.

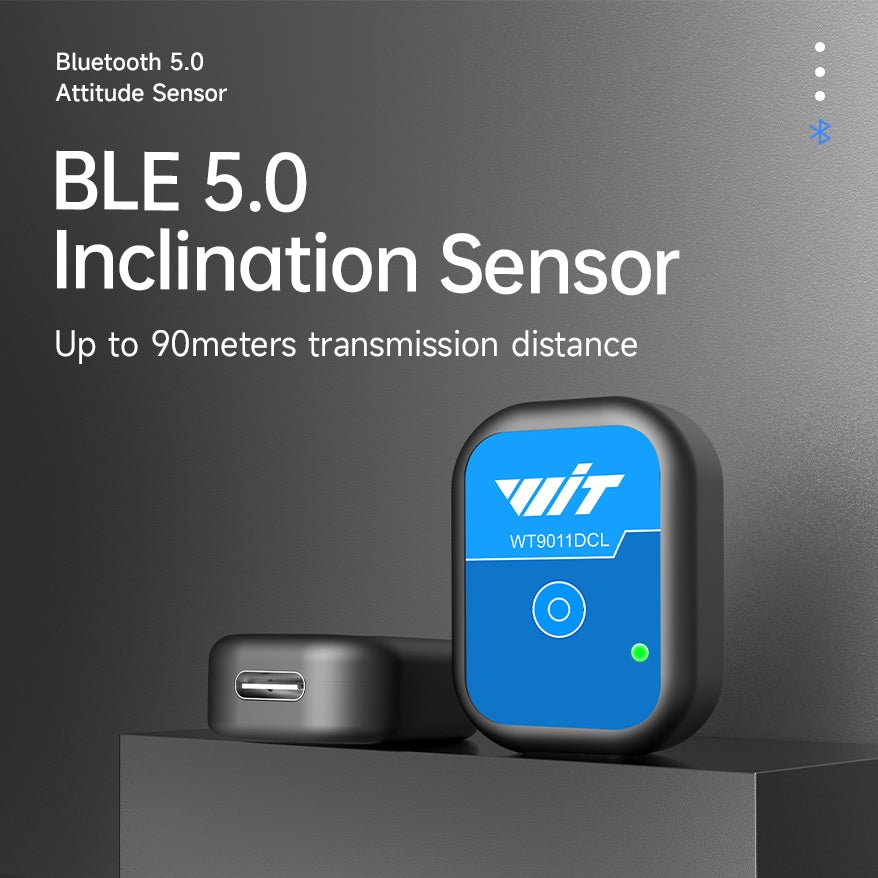

• 【Ble 5.0】Bluetooth 5.0: The Bluetooth accelerometer  support Android /IOS operating system and the maximum distance can reach 90 meters.
• 【chip】The accelerometer sensor equip with a 168MHZ high-performance cortex-M4 core.
• 【Current and baud rate】Operating current: ≈ 16mA, standby current 14uA-16uA and Data interface: baud rate 115200.

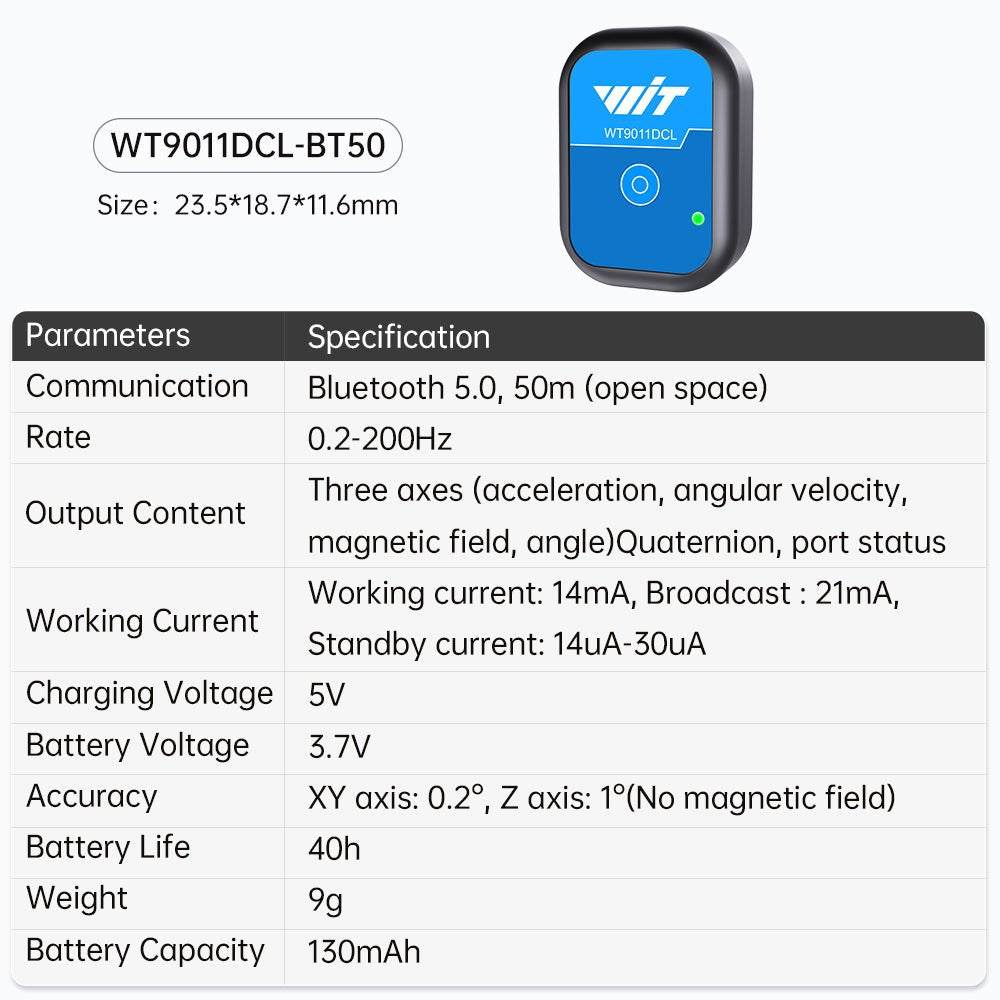

• 【Compact size】 32.5mm*23.5mm*11.4mm small size, therefore it easy to use in various scenarios.

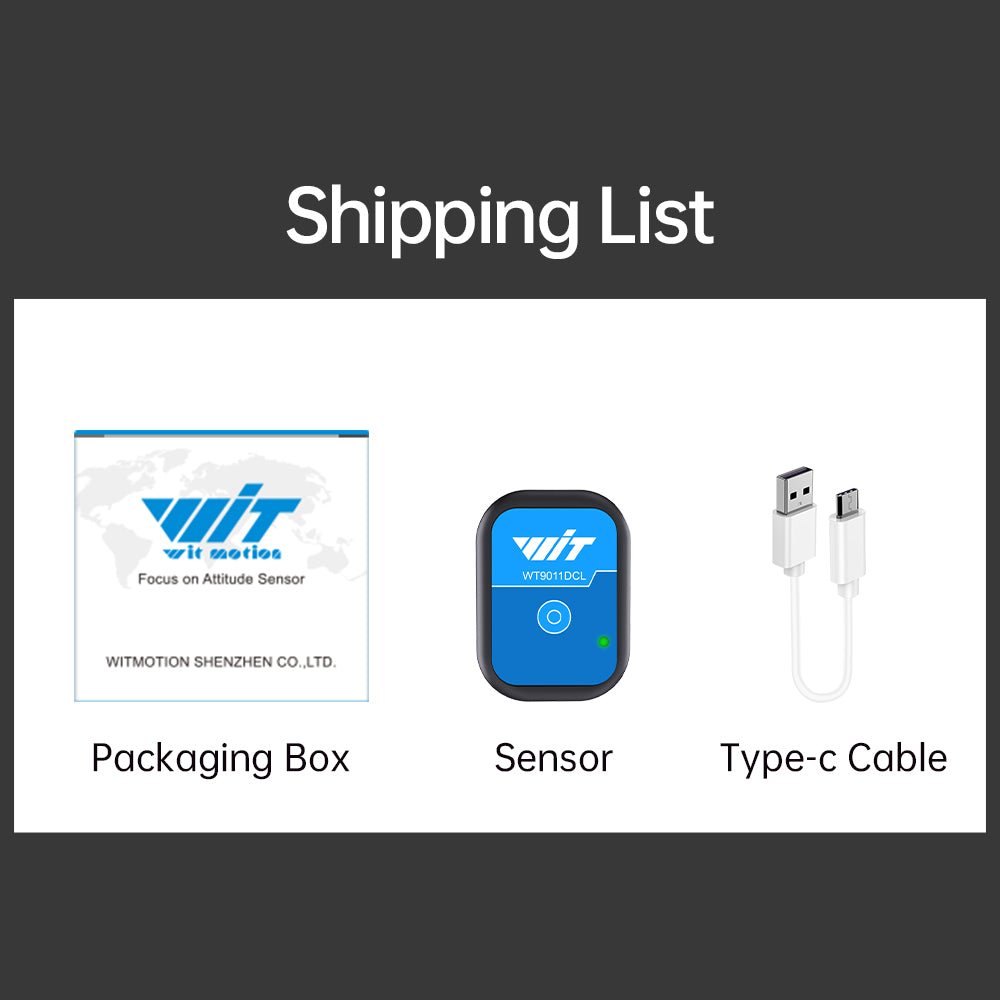

• 【You will get】WT9011DCL inclinometer*1, Type-C Charging cable*1, Quick Start Guide*1.
