RTK GNSS/INS Module UM982/UM980 Centimeter-level Positioning and Orientation

Centimeter-level positioning

WTRTK-982    RTK GPS Receiver

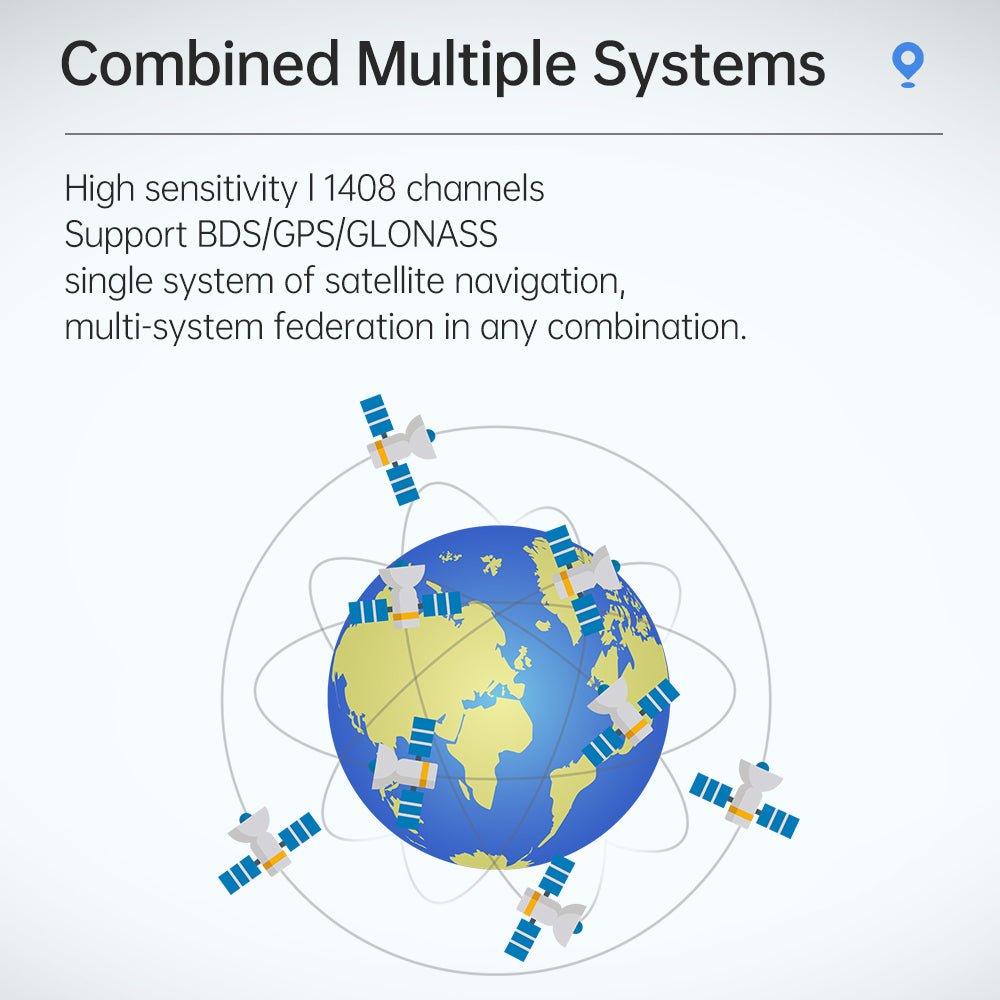

• 【All-constellation Multi-frequency】The RTK GPS module support GPS/BDS/GLONASS/Galileo/QZSS Full satellite system.
• 【Anti-GPS jamming】Built-in advanced anti-interference unit，60 dB narrowband interference suppression and interference detection，delivers reliable and accurate positioning data even in complex electromagnetic environments.

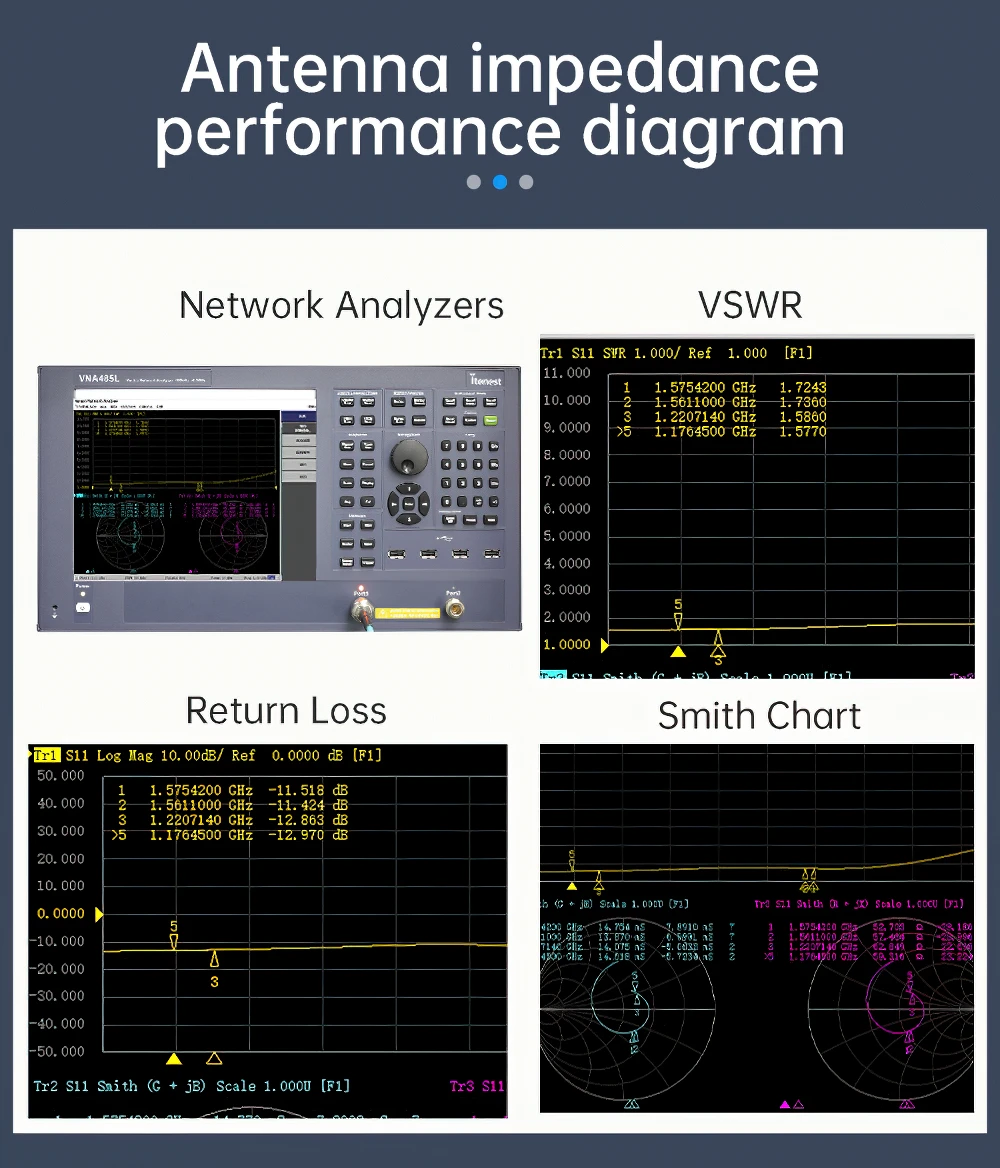

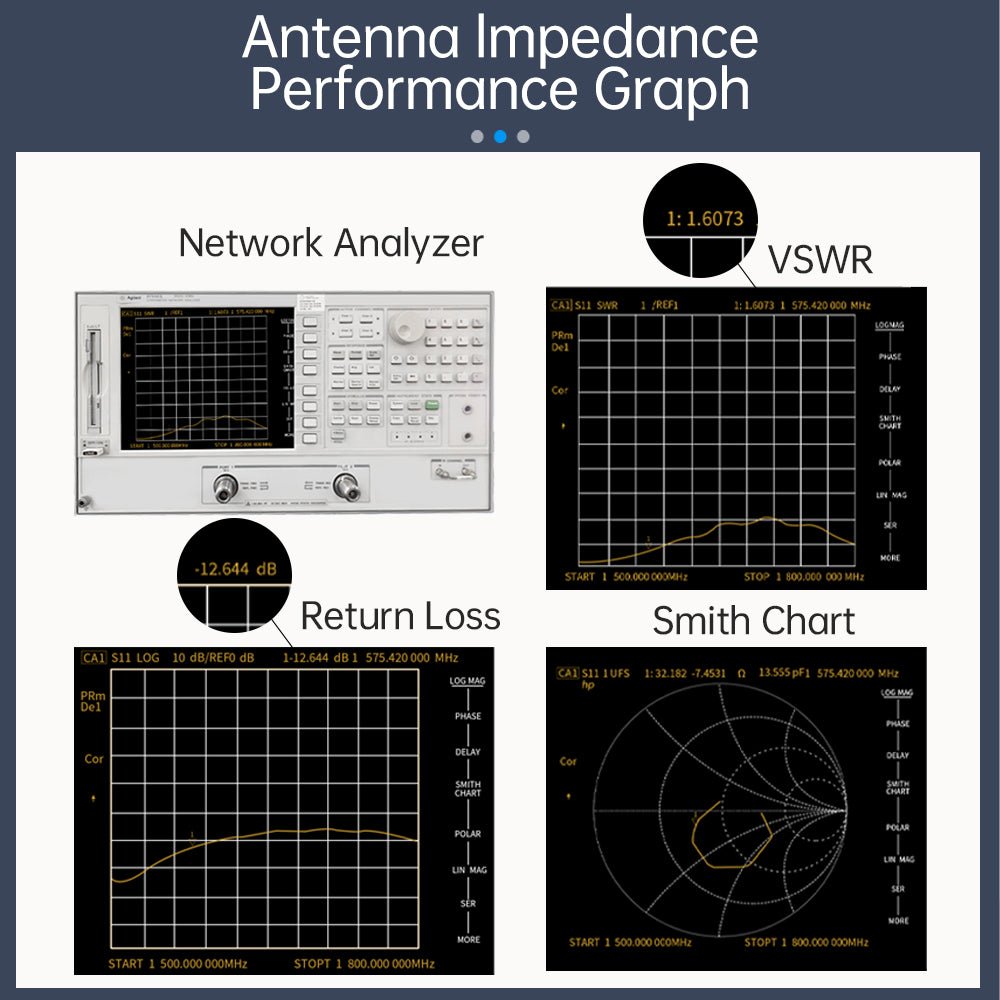

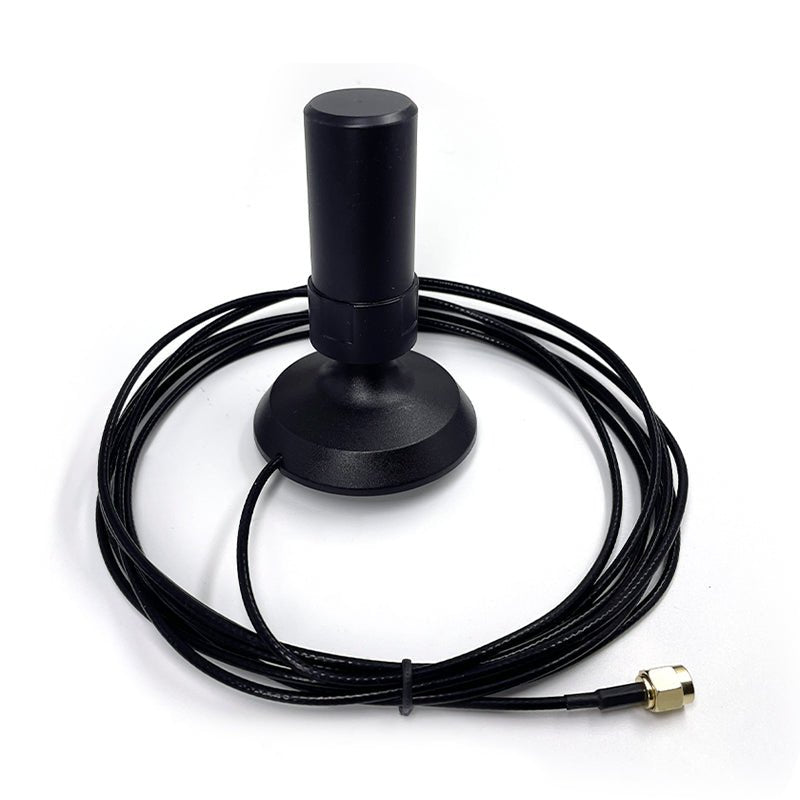

• 【Low VSWR】RTK GPS antenna is designed with π-type network impedance matching (50Ω), VSWR below 1.78.
• 【Quick positioning】It can converge quickly within 20 seconds to achieve centimeter-level positioning.
• 【Compact size】26*38*7.6mm. The RTK GPS rereceiver Ideal choice for integration.
• 【New-generation chips】This RTK GNSS receiver base on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm.
• 【Advanced Technology】Dual-antenna input, Dual-RTK dual RTK engine technology, differential input RTCM format adaptive recognition.

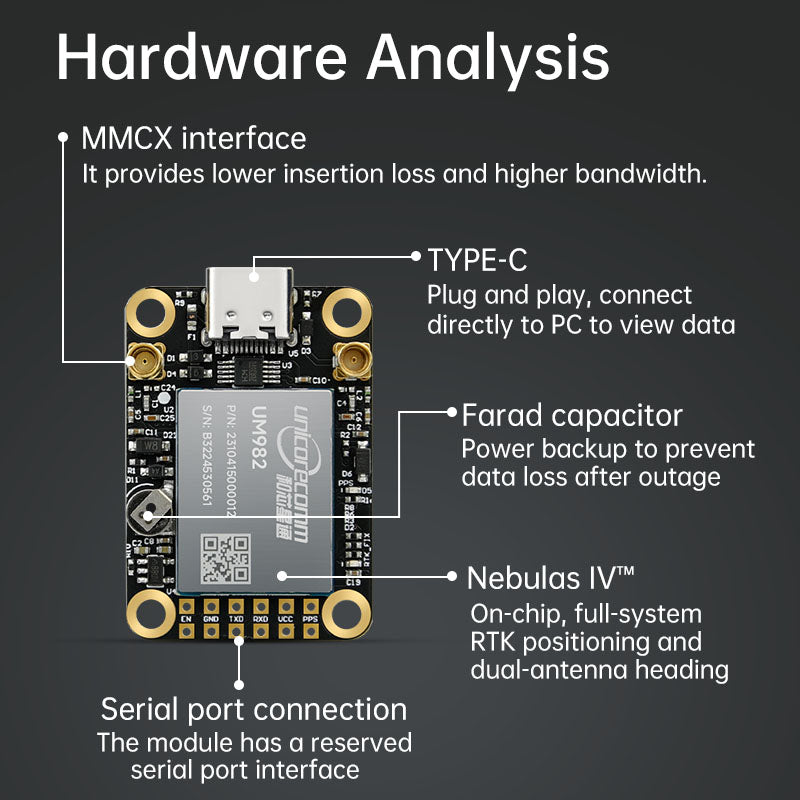

• 【Easy to link】The RTK GNSS Receiver integrates TYPE-C and XH2.54x6PIN dual interface connection.

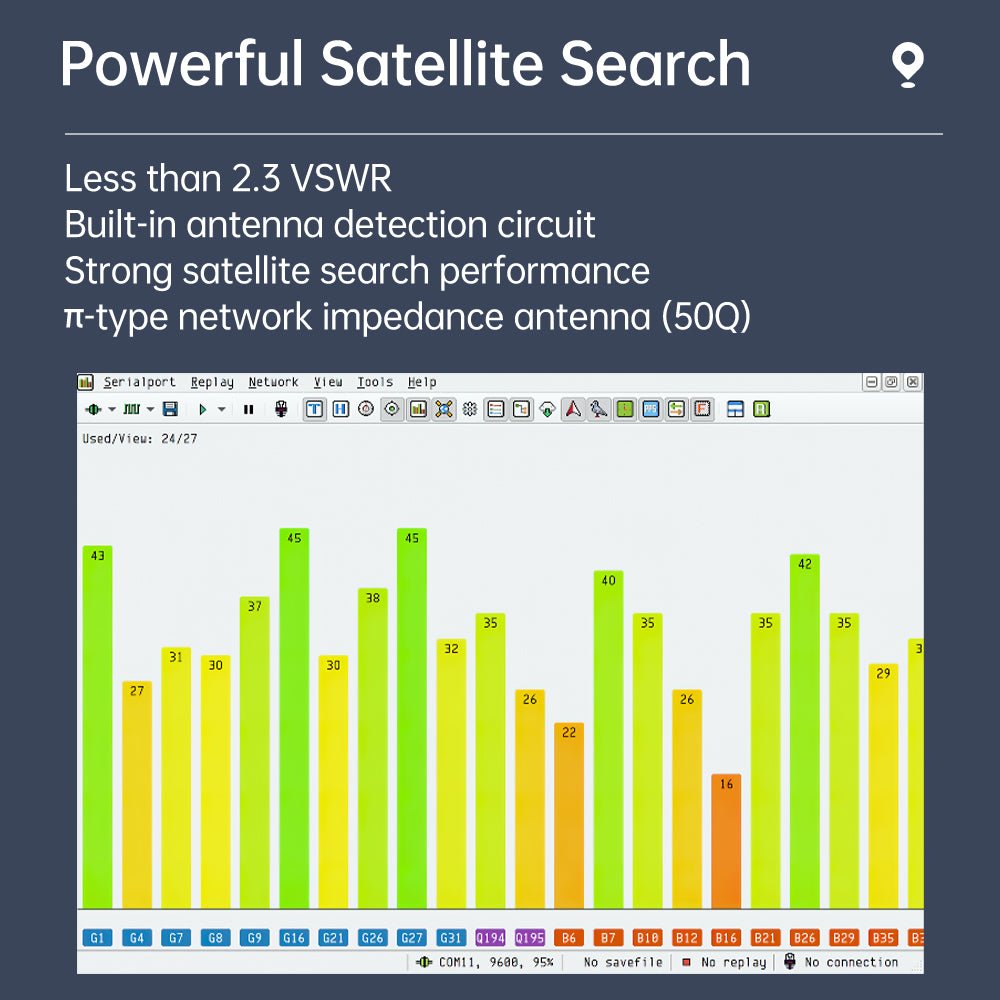

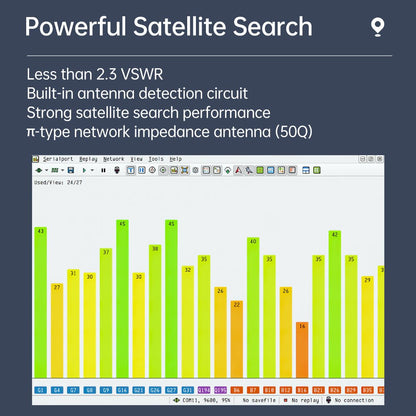

• 【Strong star search capability】RTK GPS module has strong longevity function for navigation providers such as GLONASS navigation and GPS navigation.

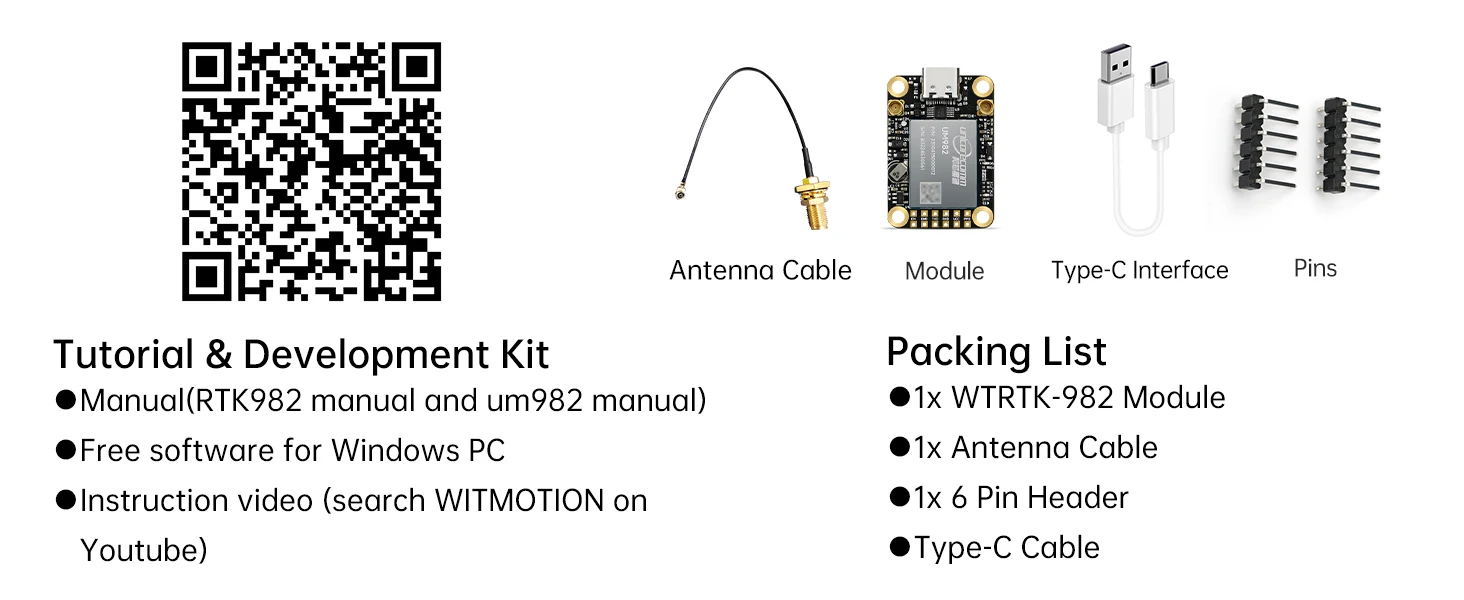

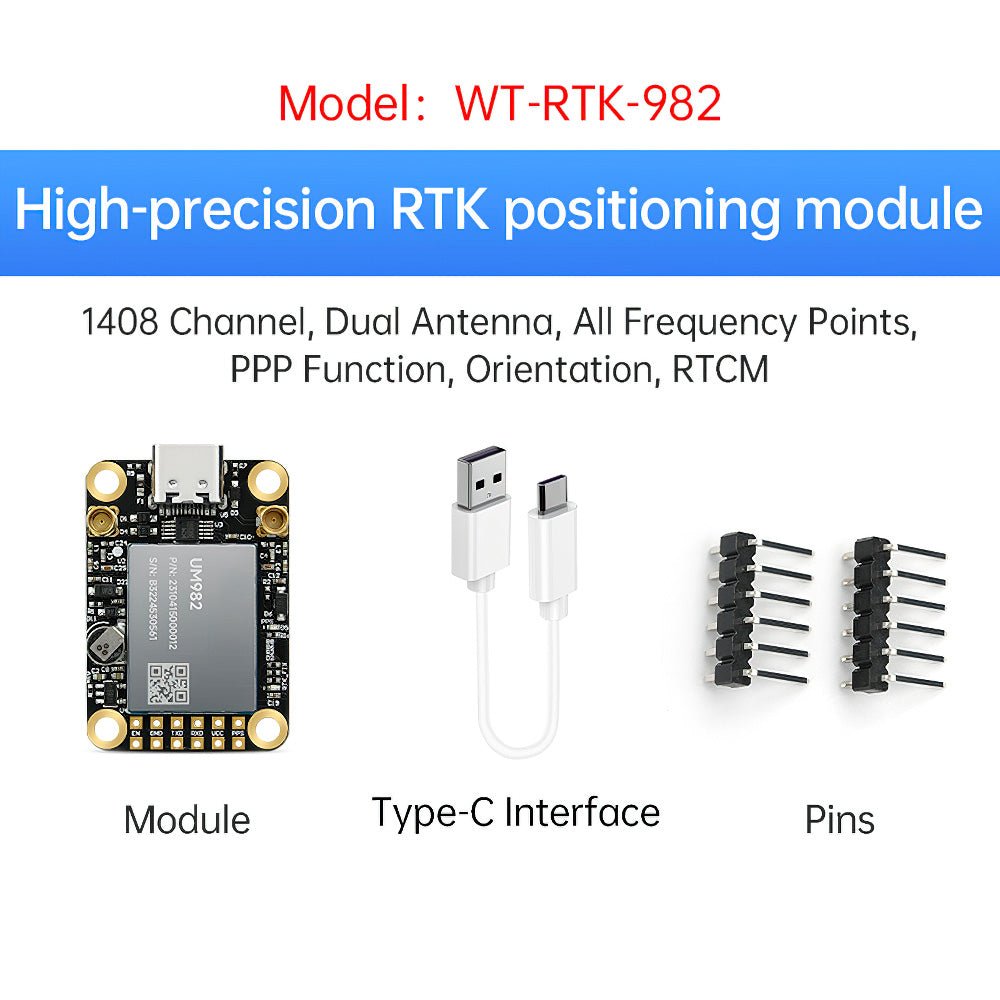

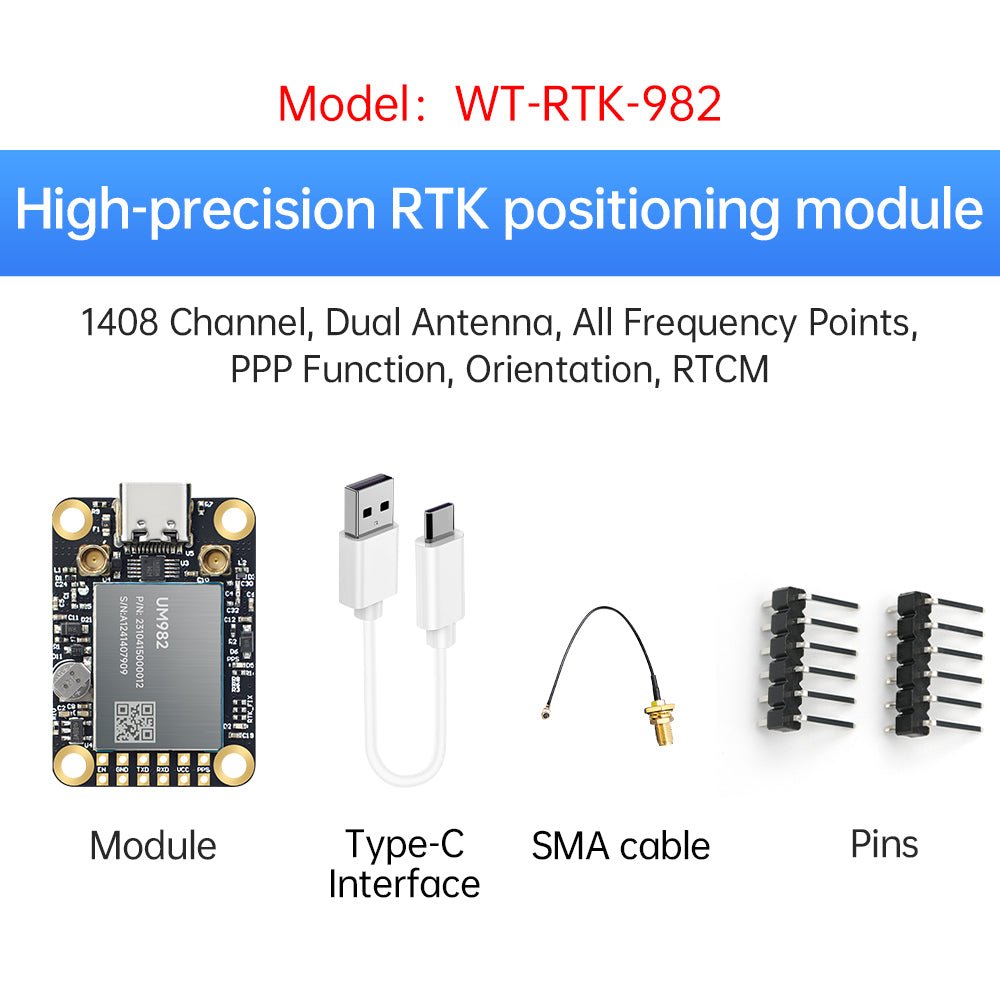

• 【You will get】WTRTK-982 module×1, SMA cable×2, Heat sink×1, Pins×2, TYPE-C cable×1
• 【Support】Rich software documentation will provide extensive visualization and evaluation features. Professional technical support team ensures worry-free after-sales.
