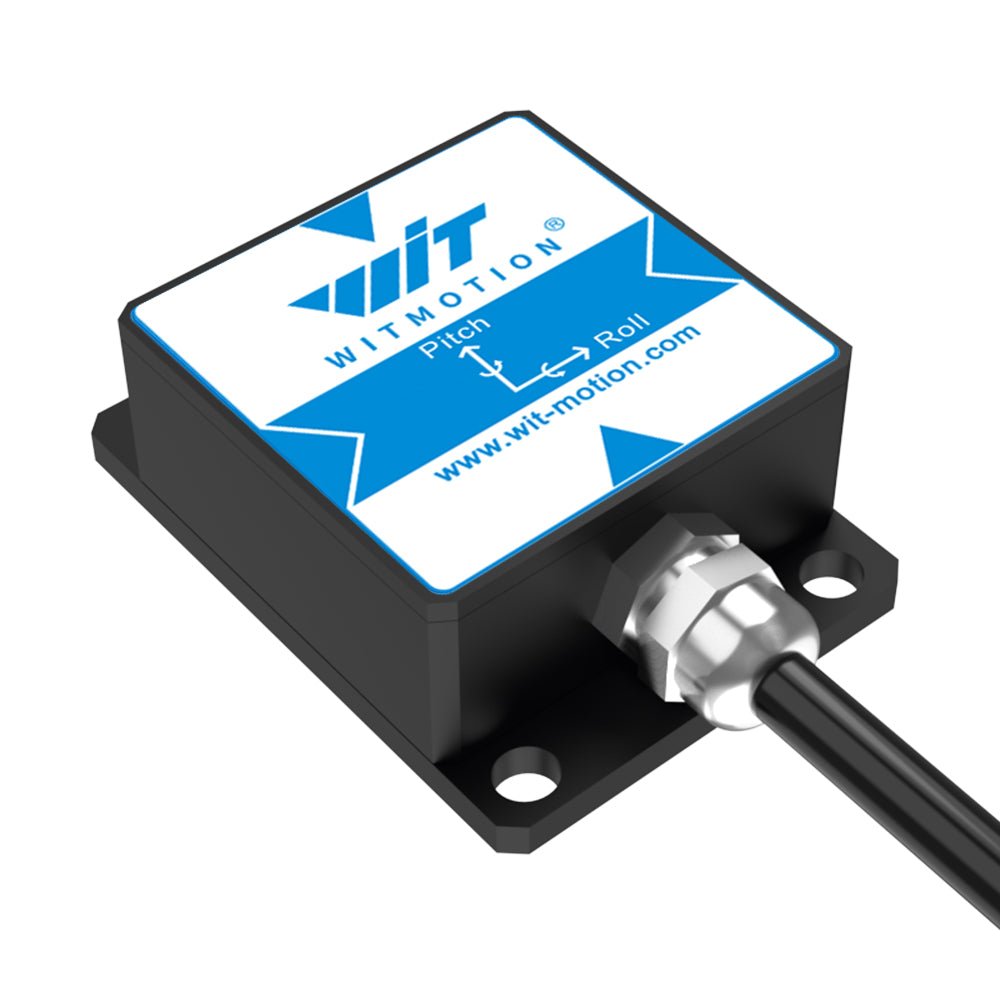

[HWT901B] MPU9250 9-axis Gyro+Angle+Digital Compass+Pa+Altitude, Mag Compensation AHRS IMU

If you have a contact or agent in China,
pls directly reach us or forward their info.

Warm Reminder:

To help customers choose accelerometers with air pressure, we upload several SKU for buying guides to indicate the related sensor series with various parameters. Please double-check the SKU pictures while you evaluate the sensor and place the order.

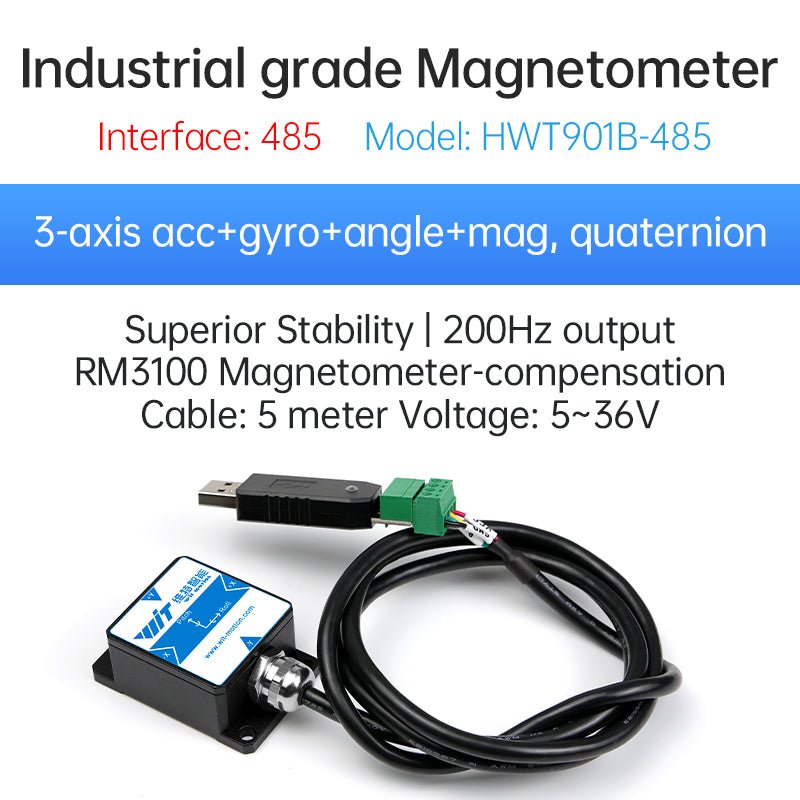

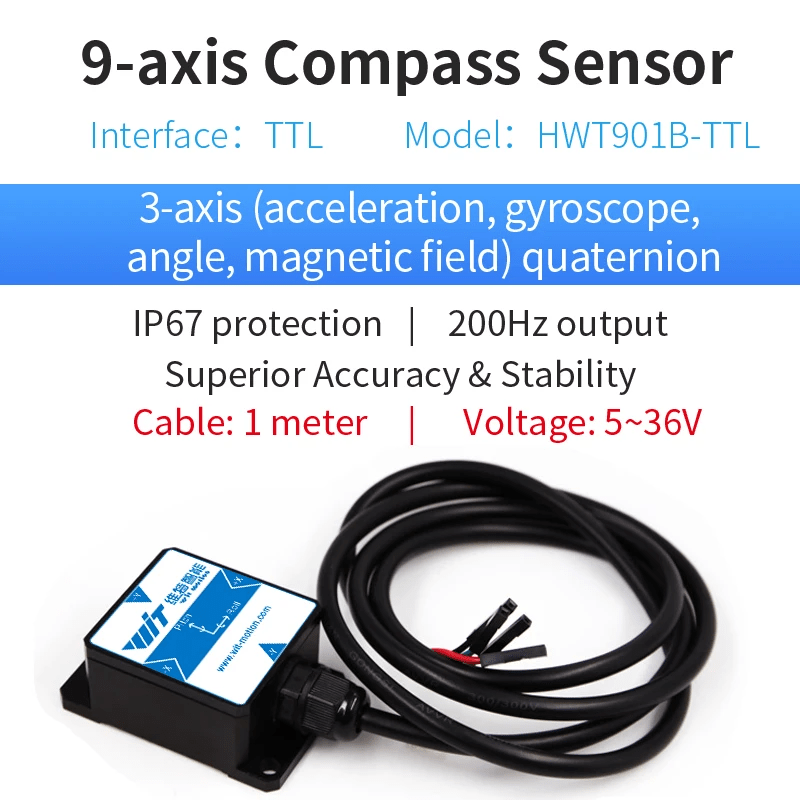

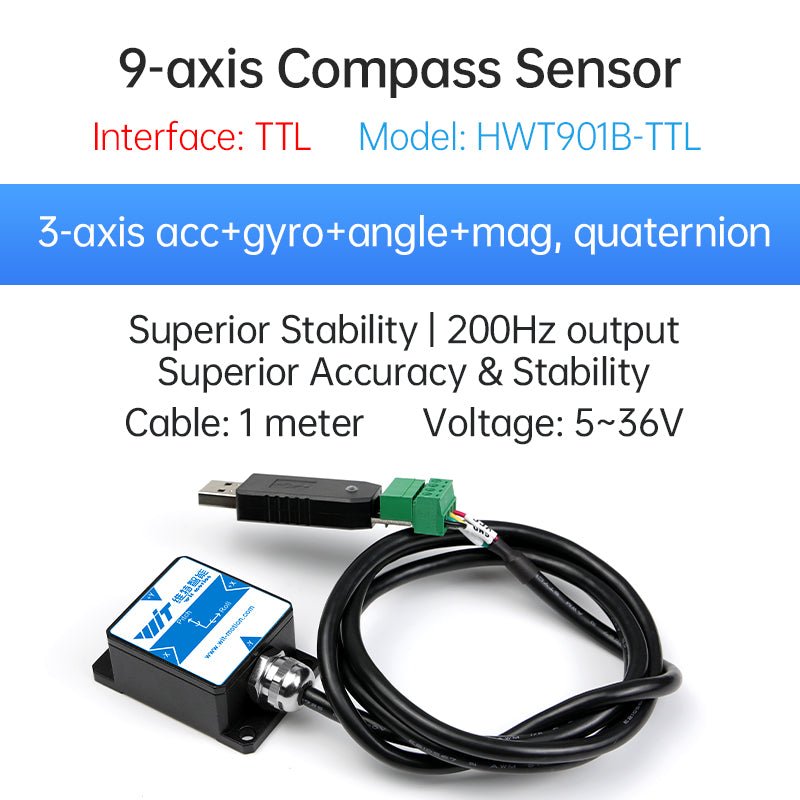

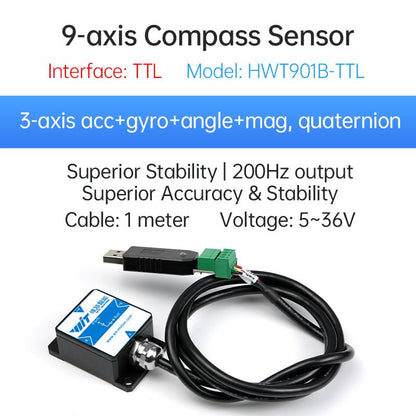

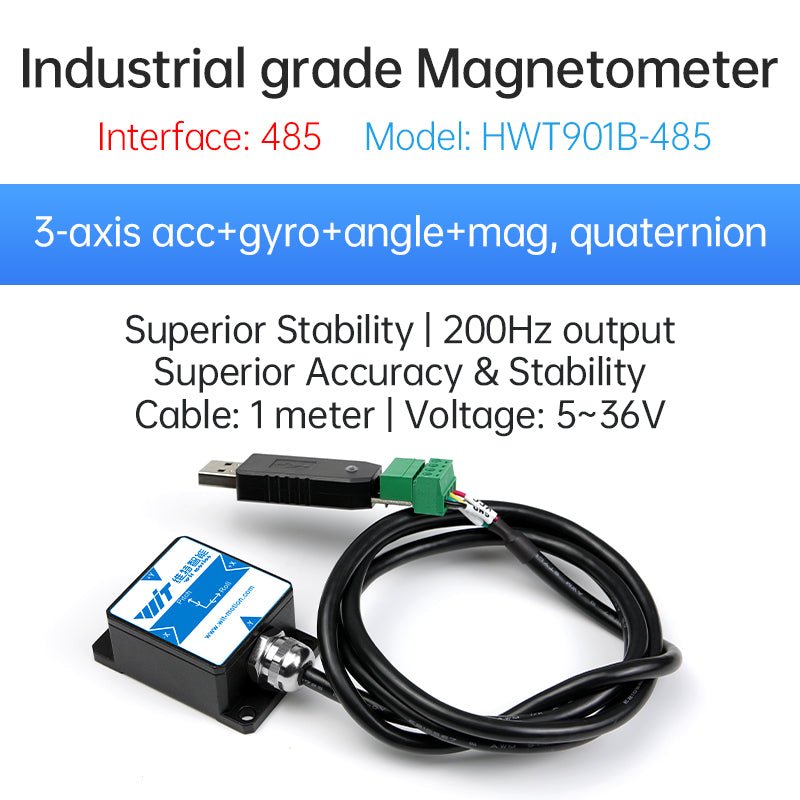

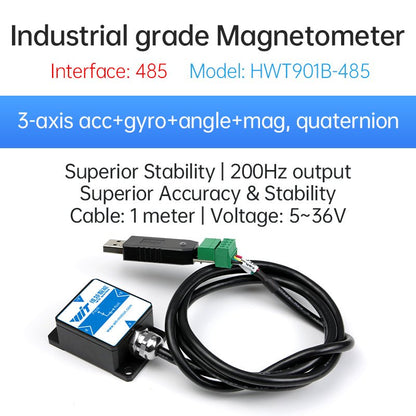

HWT901B-TTL/232/485

Inclinometer with air pressure

【Comprehensive features】HWT901B is not only an accelerometer with air pressure, but also integrates a gyroscope and a geomagnetic sensor with recovery function.

【Low noise】The use of advanced digital filtering technology can effectively reduce measurement noise and improve measurement accuracy.

【High precision】The accelerometer with air pressure integrates an attitude solver and a dynamic Kalman filter algorithm. The attitude measurement accuracy is 0.1° statically and the stability is very high.

【Easy to link】Supports serial port, allowing users to choose the best connection method. The serial port rate is adjustable from 4800bps to 230400bps.

【Multiple versions】Aluminum housing waterproof version is optional, IP67 waterproof, suitable for various harsh environments.

【Data output content】The accelerometer with air pressure can output time, 3-axis acceleration, 3-axis angular velocity, 3-axis angle, 3-axis magnetic field.

【Output Optional】 Maximum data output rate of 200Hz. Output content can be selected arbitrarily, and the output rate is adjustable from 0.2 to 200Hz.
