[HWT9053-485] High accuracy (X/Y±0.001°) 3-axis Acc+Gyro+Mag Electronic Compass Sensor, IP68

• [High performance] Solid data output: 3-axis XYZ (pitch roll yaw) acceleration + gyro + angle + magnetic field + barometric pressure + height. Measurement range and output rate (0.2-200Hz) can be selected. Video link: www.youtube.com/c/WITMOTION/search?query=HWT9053
• [Robust design] Equipped with a 32-bit processor and a highly integrated MEMS IMU module, it guarantees high performance and high signal noise immunity in harsh environments.

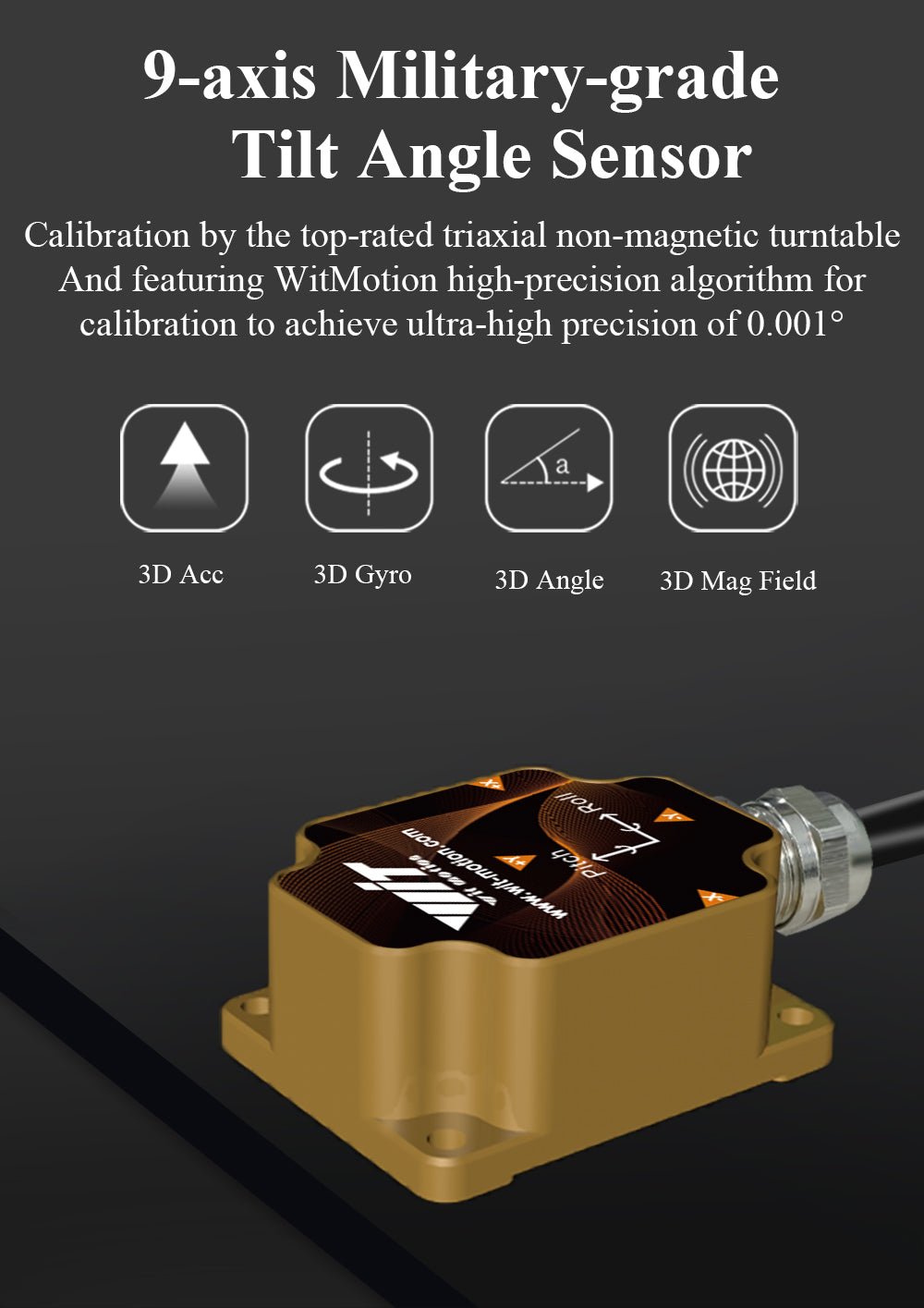

• [Military inclinometer] RM3100 Magnetometer-By combining a correction chip with automatic data correction and the Kalman algorithm, measurement accuracy at 0.001 degrees (X, Y axis) and low drift of Z axis angle are realized.
• [Strength of WITMOTION] A professional posture measurement solution provider for 8 years. The WITMOTION sensor integrates a uniquely developed dynamic fusion algorithm and Kalman filtering to ensure stable data output, excellent bias stability, low noise level, and improved measurement accuracy.

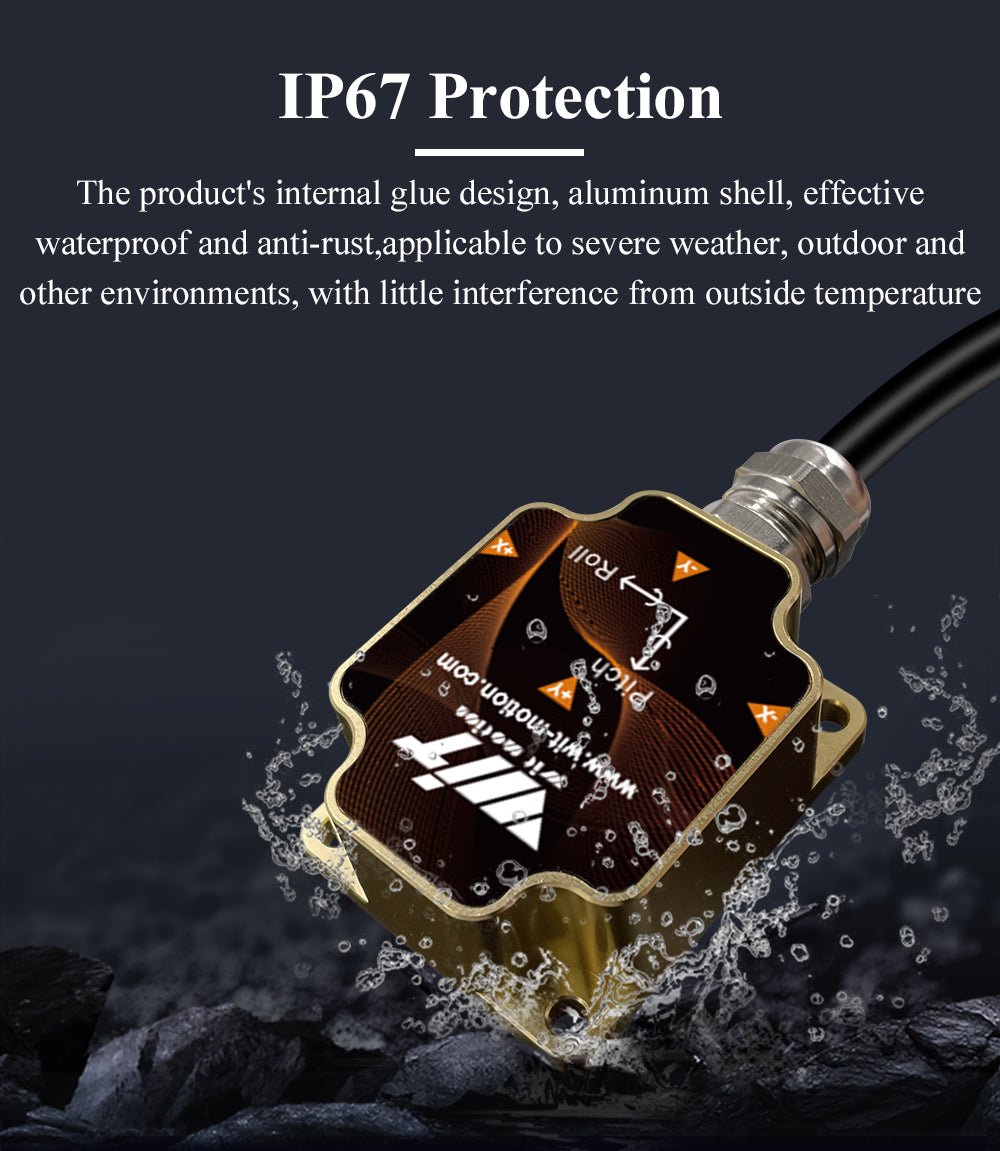

• [Solid Case]  IP67-level protection, aluminum shell, strong resistance to external electromagnetic interference, stable performance, and can adapt to long-term work in harsh industrial environments.
• [Safety support] 12 months quality guarantee. Option 1. The tutorial link is printed on the guide card in the package. Option 2. Complete tutorial download link: (https://github.com/witmotion/HWT9053-485). Option 3. If you have any questions, please feel free to contact us. We will provide services and solutions that will satisfy our customers. support@wit-motion.com
