【9-Axis Accelerometer+Tilt Sensor】WT901 High-Accuracy Acceleration+Gyroscope+Angle +Magnetometer with Kalman Filtering, Triaxial MPU9250 AHRS IMU (IIC/TTL, 200Hz), for PC/Android/Arduino

Available:In Stock
$25.90 $40.00
  • Order within

  • 【 High Performance 】Rock-solid data output: 3-axis XYZ (Pitch Roll Yaw) Acceleration+ Gyro+ Angle+ Magnetic field+Quaternion, measurement range and output rate ( 0.2-200Hz) selectable
  • 【 Robust Design 】 Cortex-M0 core processor, highly-integrated MEMS, and Kalman Algorithm combine to deliver measurement accuracy at 0.05 degree(X, Y-axis), small in size, diverse interface, professional for customer's integration project
  • 【 WITMOTION Advantage 】9-year Professional Attitude Measuring Solution Provider, sensors integrated R&D dynamic fusion algorithm and Kalman Filtering ensuring stable data output and excellent bias stability, low noise level, increasing measurement accuracy
  • 【 Worry-free Support 】12-month warranty, lifetime friendly customer service by WitMotion team. Option 1. The tutorial link is printed on the guiding card inside the package. Option 2. search wit-motion(dot)com and download the complete tutorial. Option 3. contact us if you need any help, support (at) wit-motion (dot) com

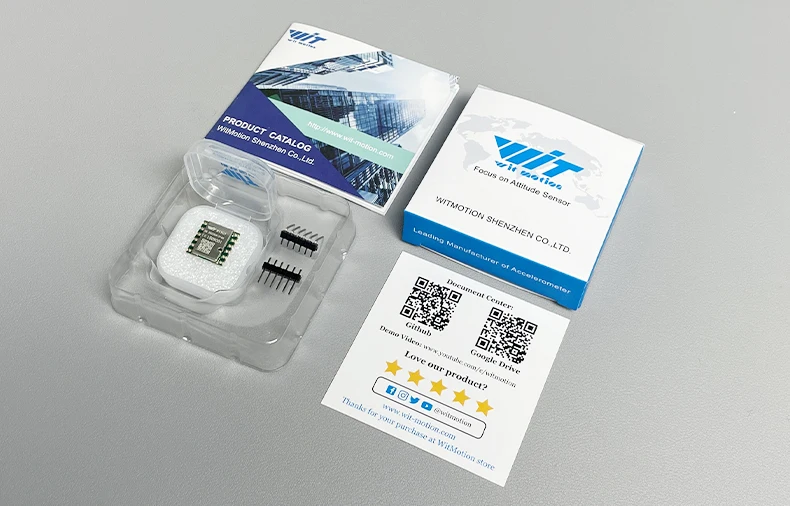

  • 【 What You Get 】1 x WitMotion WT901 Accelerometer sensor+ 2* Six pin male header (1x6) +1 x Welcome guide (USB-UART converter not included )
  • is_customized: Yes
  • Usage: Tilt Angle Measurement
  • Type: Acceleration Sensor
  • Output: Digital Output
  • Brand Name: WitMotion
  • Origin: Mainland China
  • Output Data: Time, Acceleration, Angular Velocity, Angle, Magnet Field
  • Input Voltage: 3.3V-5V
  • Size: 15.24*15.24*2.5mm
  • Consumption Current: typical 10mA
  • Measuing: Thriple-Axis, XYZ, (Roll, Pitch, Yaw)
  • Interface: TTL interface
  • Design: Kalman Filtering

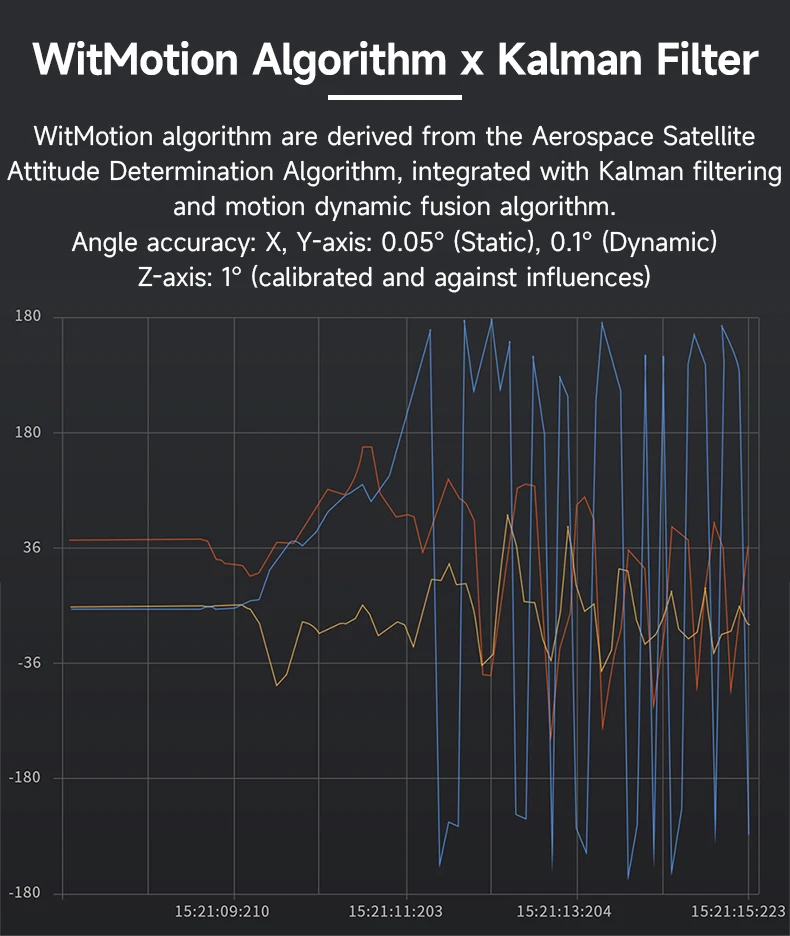

  • Accuracy: XY Static: 0.05 degree, Z-axis 1 degree
  • Angle Accuracy: Dynamic 0.1 degree
  • After-sale Service: Lifetime Technical Support

  • 【 High Performance 】Rock-solid data output: 3-axis XYZ (Pitch Roll Yaw) Acceleration+ Gyro+ Angle+ Magnetic field+Quaternion, measurement range and output rate ( 0.2-200Hz) selectable
  • 【 Robust Design 】 Cortex-M0 core processor, highly-integrated MEMS, and Kalman Algorithm combine to deliver measurement accuracy at 0.05 degree(X, Y-axis), small in size, diverse interface, professional for customer's integration project
  • 【 WITMOTION Advantage 】9-year Professional Attitude Measuring Solution Provider, sensors integrated R&D dynamic fusion algorithm and Kalman Filtering ensuring stable data output and excellent bias stability, low noise level, increasing measurement accuracy
  • 【 Worry-free Support 】12-month warranty, lifetime friendly customer service by WitMotion team. Option 1. The tutorial link is printed on the guiding card inside the package. Option 2. search wit-motion(dot)com and download the complete tutorial. Option 3. contact us if you need any help, support (at) wit-motion (dot) com
  • 【 What You Get 】1 x WitMotion WT901 Accelerometer sensor+ 2* Six pin male header (1x6) +1 x Welcome guide (USB-UART converter not included )
  • is_customized: Yes
  • Usage: Tilt Angle Measurement
  • Type: Acceleration Sensor
  • Output: Digital Output
  • Brand Name: WitMotion
  • Origin: Mainland China
  • Output Data: Time, Acceleration, Angular Velocity, Angle, Magnet Field
  • Input Voltage: 3.3V-5V
  • Size: 15.24*15.24*2.5mm
  • Consumption Current: typical 10mA
  • Measuing: Thriple-Axis, XYZ, (Roll, Pitch, Yaw)
  • Interface: TTL interface
  • Design: Kalman Filtering
  • Accuracy: XY Static: 0.05 degree, Z-axis 1 degree
  • Angle Accuracy: Dynamic 0.1 degree
  • After-sale Service: Lifetime Technical Support

Tutorial Link

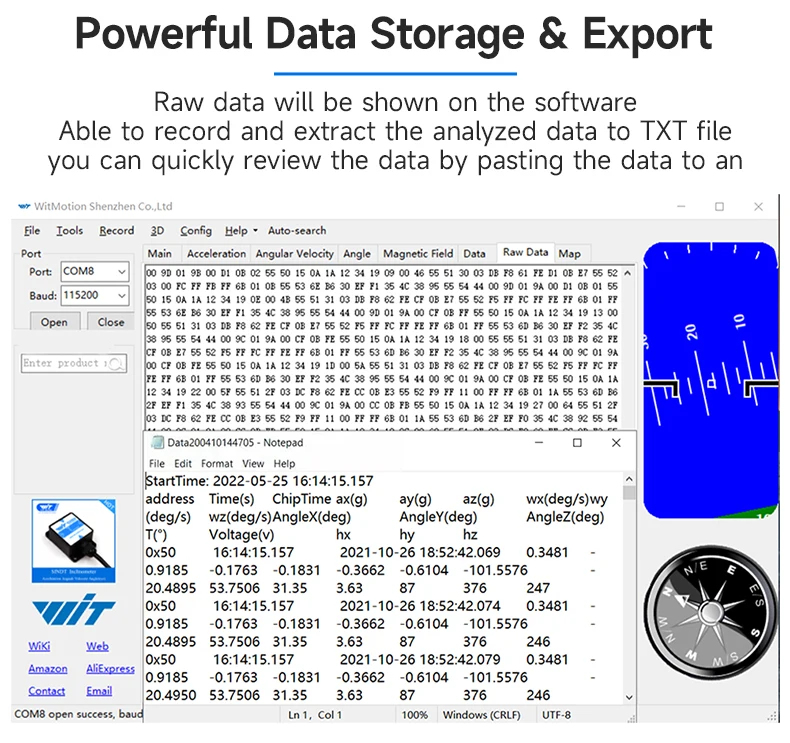

PC Software

    Android APP

     Manual, Datasheet

         Tutorial Videos

        SDK

         Sample codes

      Technical Support:support@wit-motion.com
