[WT901] High-Accuracy Acc+Gyro+Angle +Mag module, Triaxial AHRS IMU IIC/TTL

If you have contact or agent in China,
pls directly reach us or forward their info.

9-axis accelerometer module

WT901 IMU

The inclinometer module Ideal choice for integration

• 【 High Performance 】WT901 accelerometer module data output: 3-axis XYZ (Pitch Roll Yaw) Acceleration+ Gyro+ Angle+ Magnetic field+Quaternion.
• 【 Robust Design 】 Cortex-M0 core processor, highly-integrated MEMS, and Kalman Algorithm combine to deliver measurement accuracy at 0.05 degree(X, Y-axis).
• 【 WITMOTION Advantage 】8-year Professional Attitude Measuring Solution Provider, sensors integrated R&D dynamic fusion algorithm and Kalman Filtering ensuring stable data output and excellent bias stability, low noise level, increasing measurement accuracy.
• 【 Worry-free Support 】12-month warranty, lifetime friendly customer service by WitMotion team. Option 1. The tutorial link is printed on the guiding card inside the package. Option 2. search wit-motion(dot)com and download the complete tutorial. Option 3. contact us if you need any help, support (at) wit-motion (dot) com

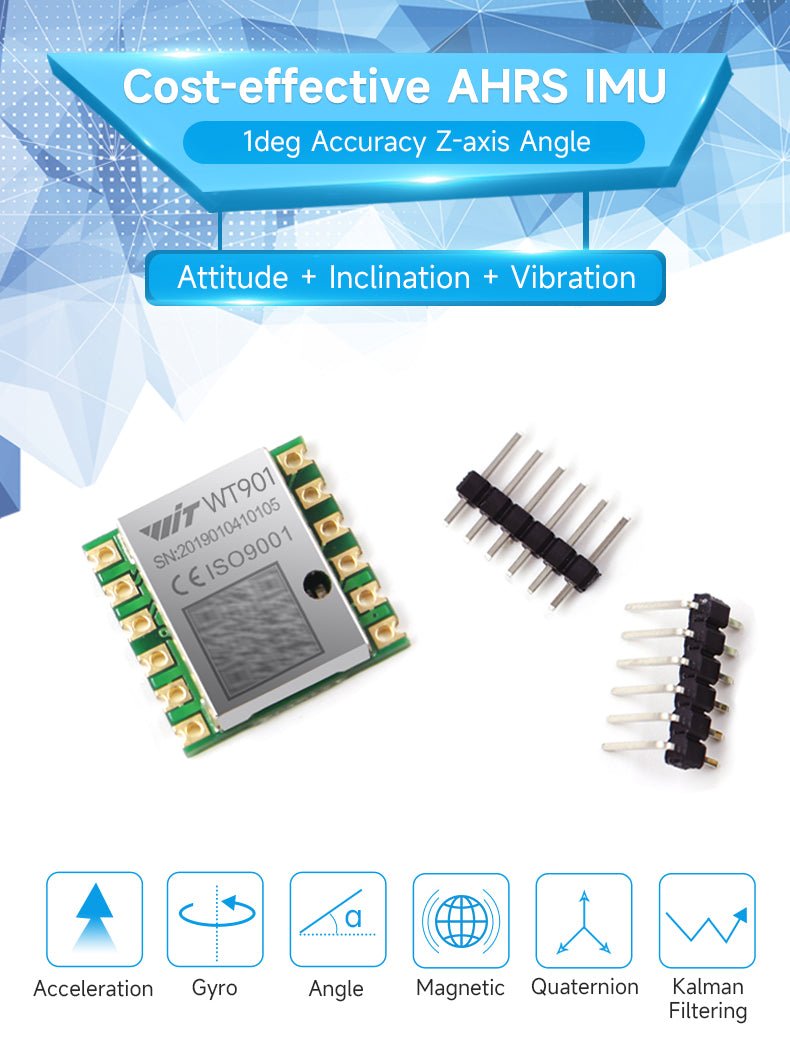

• 【 What You Get 】1 x WitMotion WT901 TTL Accelerometer module+ 2* Six pin male header (1x6) +1 x Welcome guide (USB-UART converter not included )

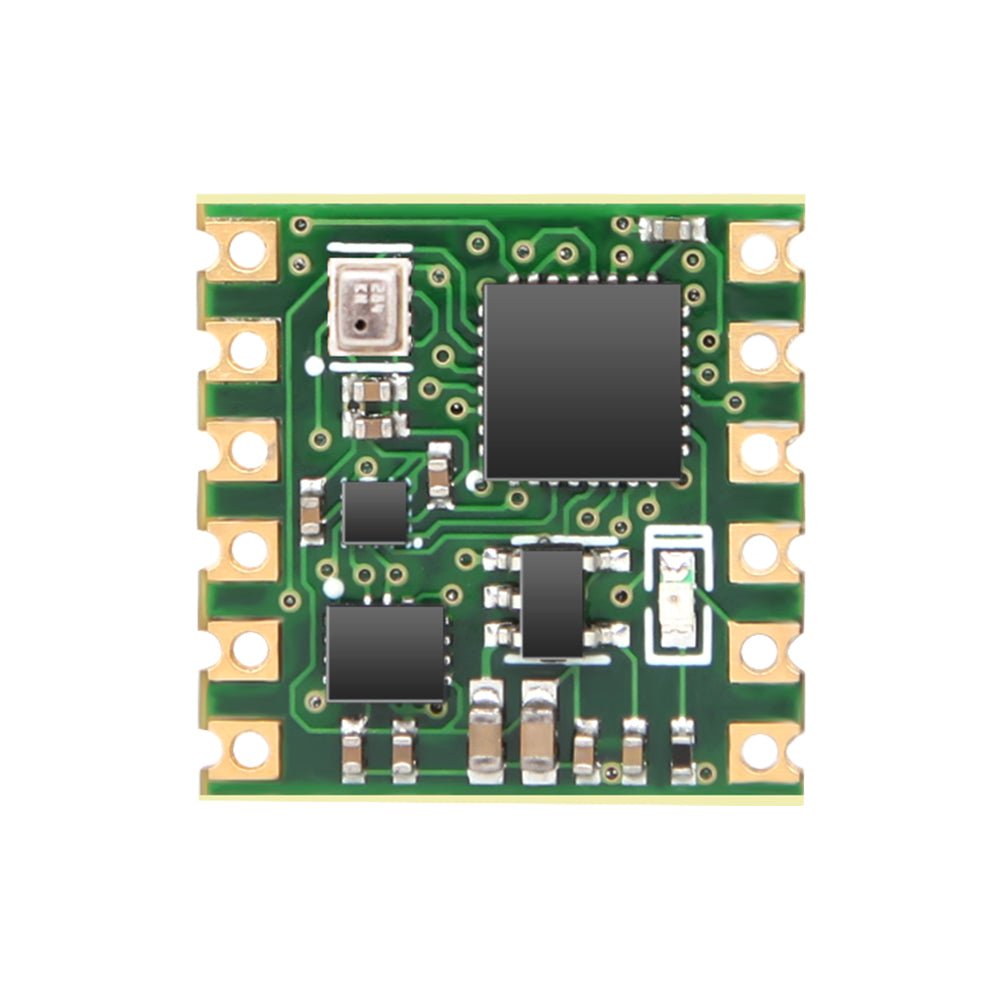

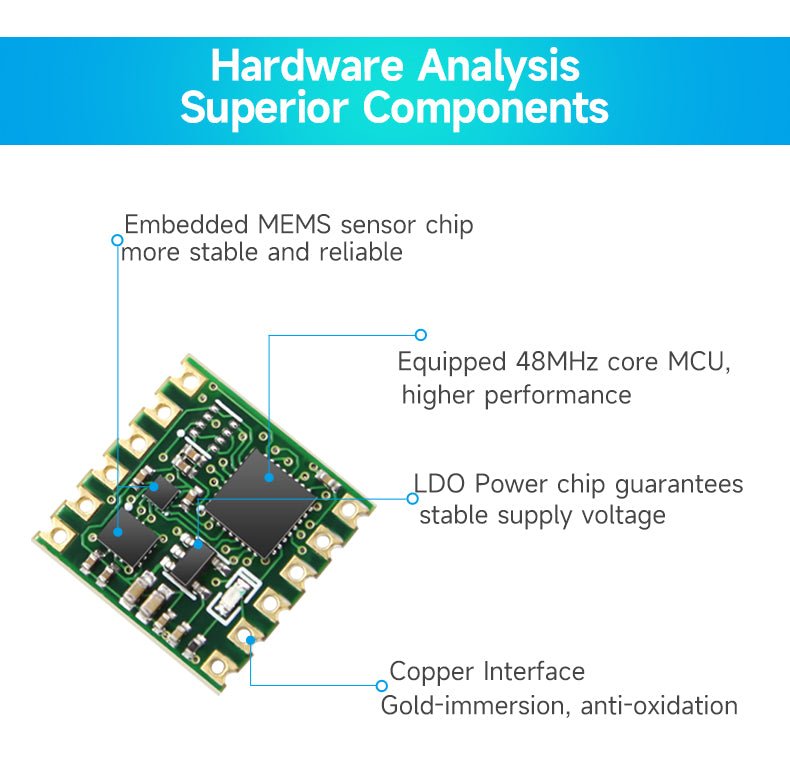

• 【Compact size】The inclinometer module adopts 4-layer PCB technology, which is thinner, smaller and more reliable.
• 【Sleep wake-up】WT901 inclinometer module support low power instruction wake-up and pin wake-up. Sleep power consumption 15ua-35ua
• 【Easy to integrate】Using stamp hole gold plating process, it can be embedded in the user's PCB board.
• 【Stable structure】The accelerometer module has its own voltage stabilization circuit, the operating voltage is 3.3~5V, the pin level is compatible with 3.3V/5V embedded systems.
